MOTION 64 MINIMAL SLIDING THERMAL SYSTEM
Technical characteristics
| Frame Height, Vertical | 42 mm |
| Frame Height, Horizontal Bottom | 57 mm |
| Frame Height, Horizontal Top | 52 / 60 mm |
| Frame Width | 74 / 157 / 240 / 324 mm |

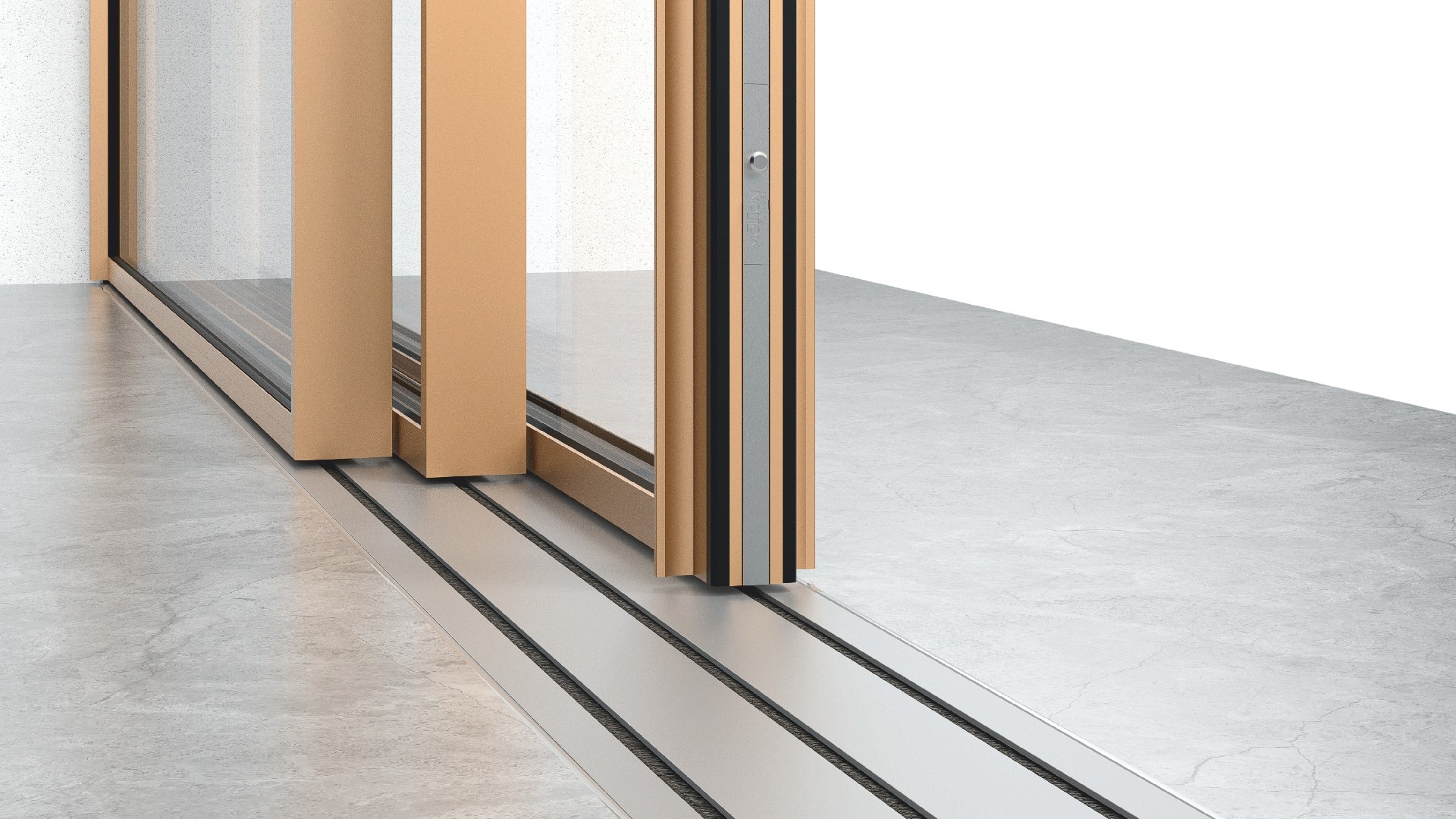

| Floor Typology | Step, Submerged |
| Riding Typology | Blade |
| Sash Height, Vertical | 22 / 30 mm |
| Sash Height, Horizontal | 29 mm |
| Sash Width | 59 mm |
| Centre Mullion Visible Height | 22 mm |
| Max. Weight per Sash | 1200 Kg |
| Max. Sash Width | 4000 mm |
| Max. Sash Height | 6000 mm |
| Glazing Width Possibilities | 36-38, 44-46 mm |
| Glazing type | Glazing bit + Bonding |

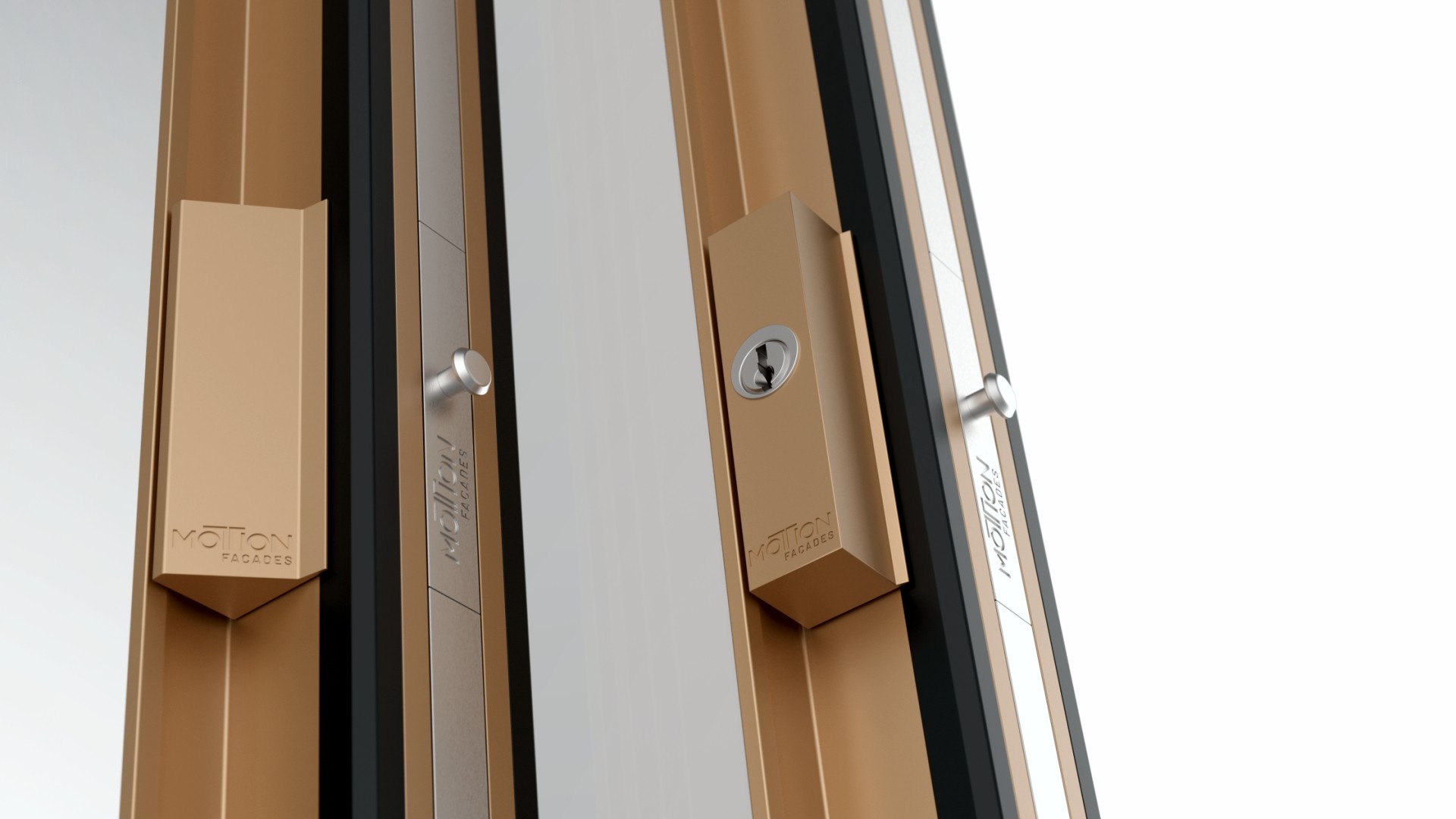

| Maximum Locking Points | 6 |
| Sealing Type | Brush with Cloth + Q-Lon |
Performances
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) |
≥0.9 W/(m2K) |
FLOOR
TYPOLOGIES
RIDING
TYPOLOGIES
HOOK
DESIGN
CONSTRUCTION
TYPOLOGIES
Blade, Step, Aluminium
Blade, Submerged, Aluminium
Blade, Submerged, Aluminium
Blade, Submerged, Aluminium, Gutter External
(Blade, Aluminium)
Glazing Bit

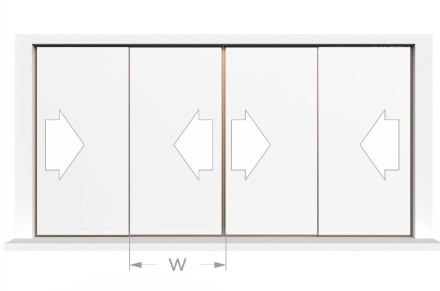

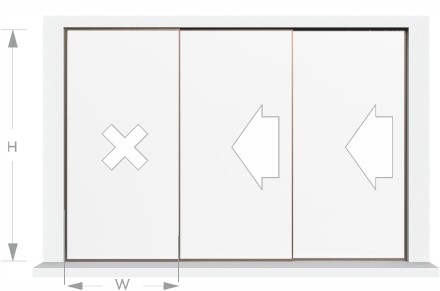

Max. Sash Width (W) 4000 mm Max. Sash Height (H) 6000 mm

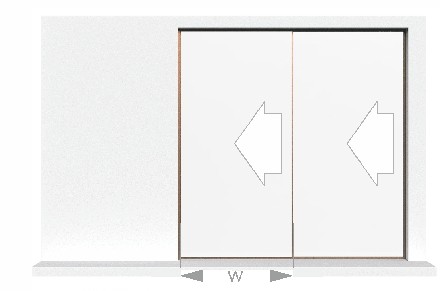

Pocket - 1, 2, 3, 4 Sashes
Fix&Sliding - 2, 3, 4 Sashes
Sliding - 2, 3, 4 Sashes

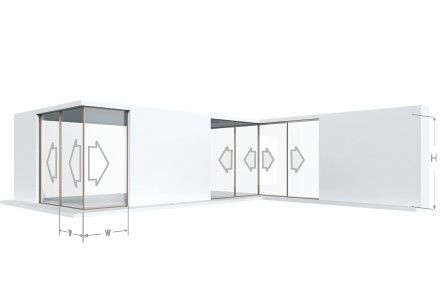

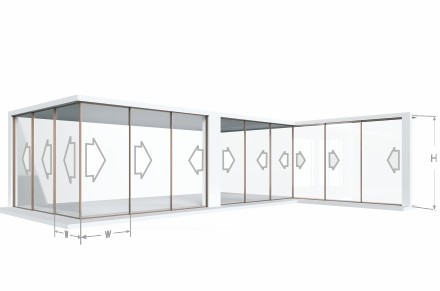

Corner Inward / Outward openning
4, 5, 6, 7, 8 Sashes
Corner Pocket Inward / Outward
1, 2, 3, 4, 5, 6, 7, 8 Sashes
