MINIMAL SLIDING THERMAL SYSTEM

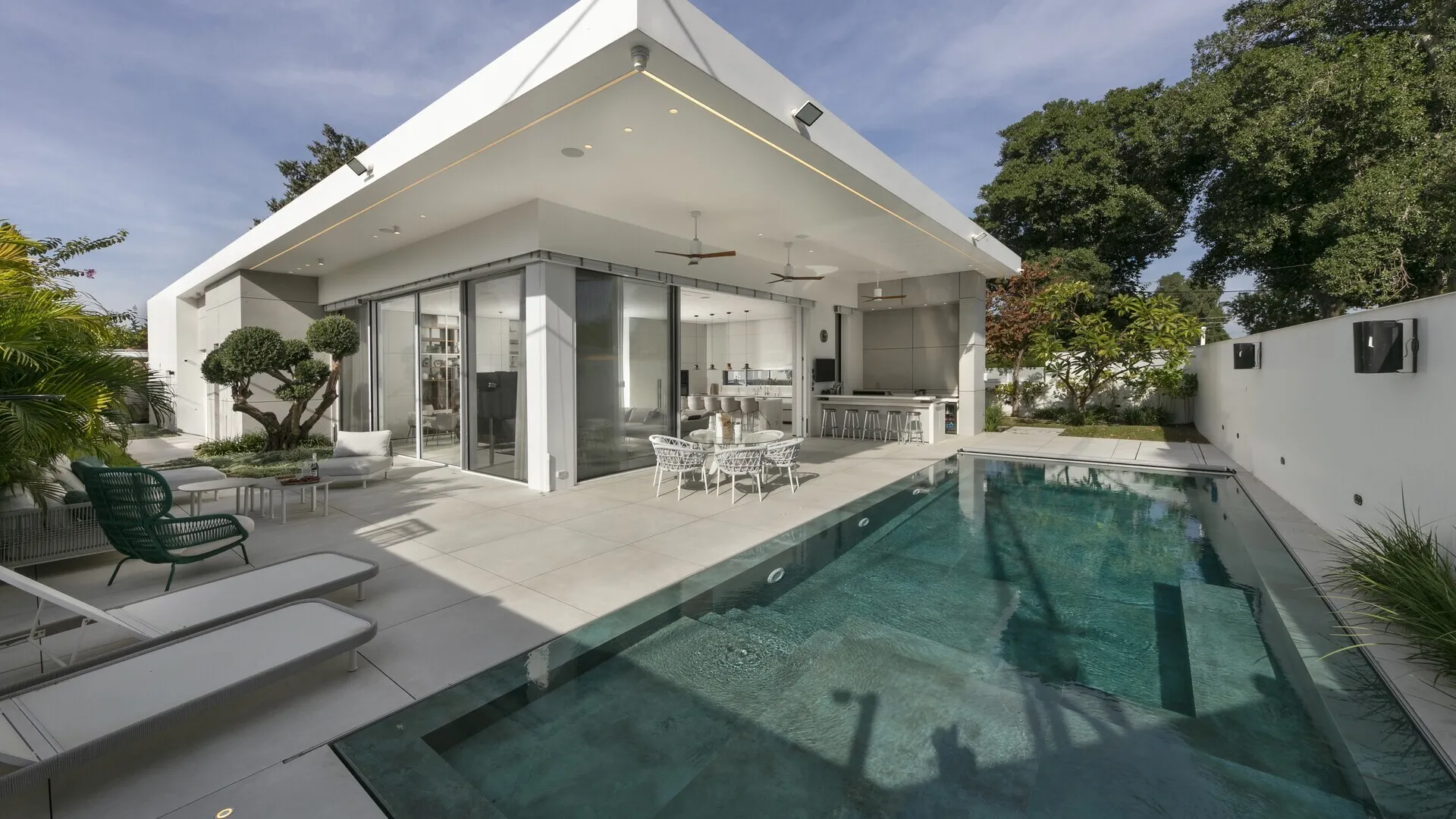

The minimal sliding system Motion 51 / 51Plus has been engineered for the fabrication of large panels up to 4,0 meters in height and 3 meters in width. Its main application is for exclusive commercial and residential buildings, where high thermal insulation and minimal aesthetics are required. The system is based on a middle mullion ranging from 16-20mm in width.

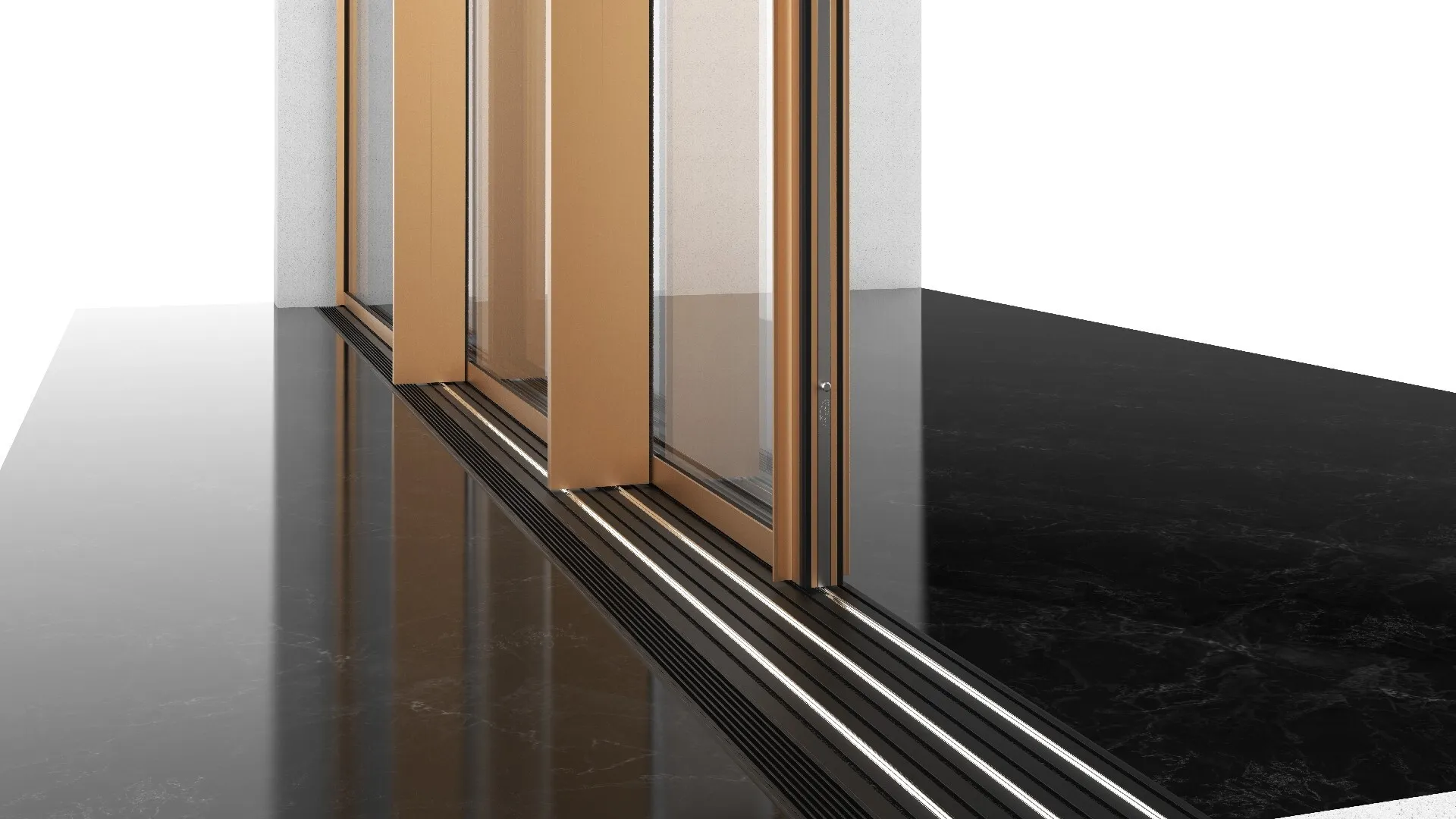

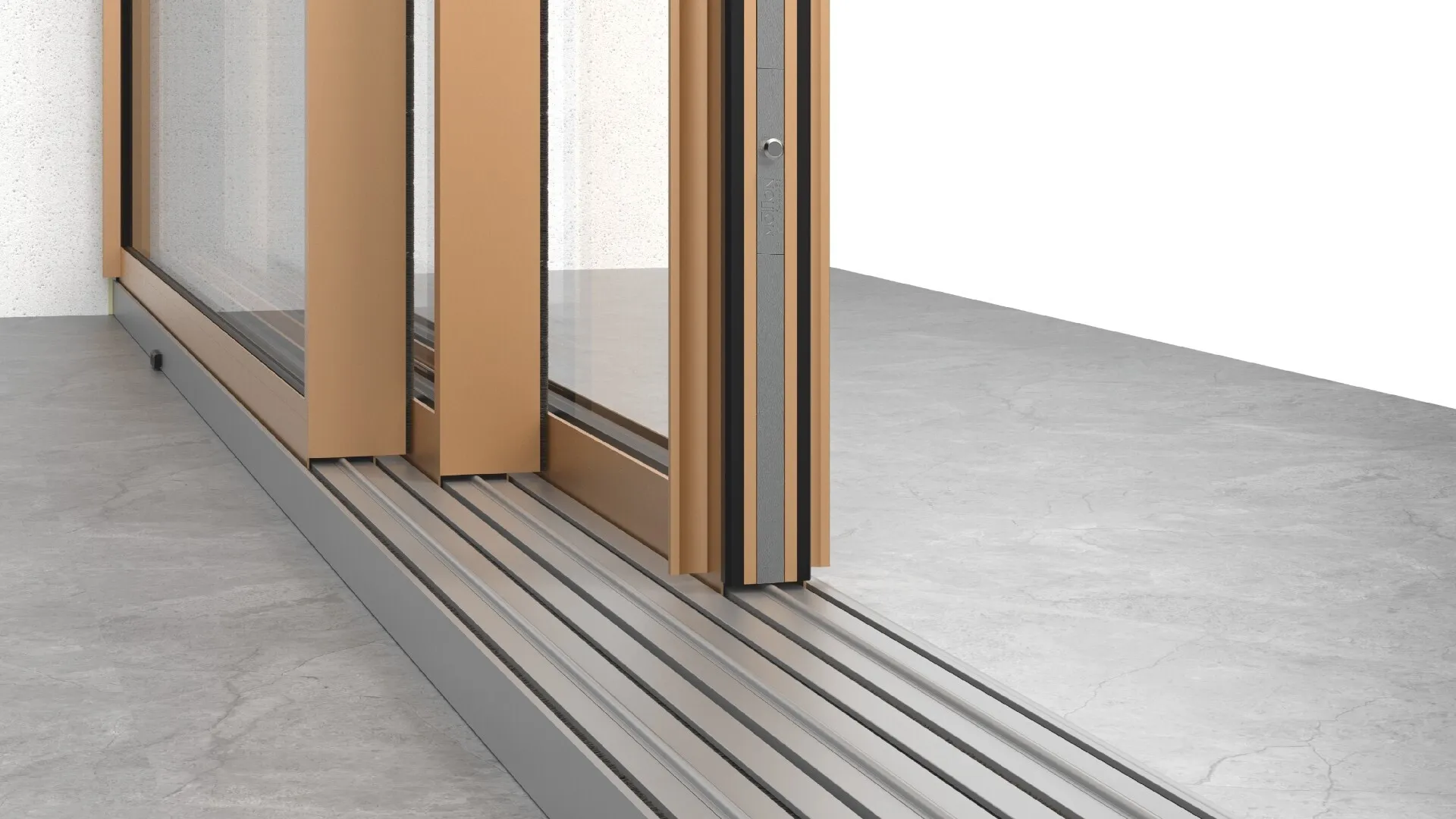

Several threshold designs are available with inline or external drainage gutter. The bottom track height is restricted to 42mm thus allowing for ease of passage. Fully flat thresholds are also available allowing for a seamless integration between the internal and external space. The system design supports all common typologies including pocket doors, fixed panels and open corners. In its standard configuration a 32mm double glass panel is used to ensure high thermal efficiency and acoustic insulation.

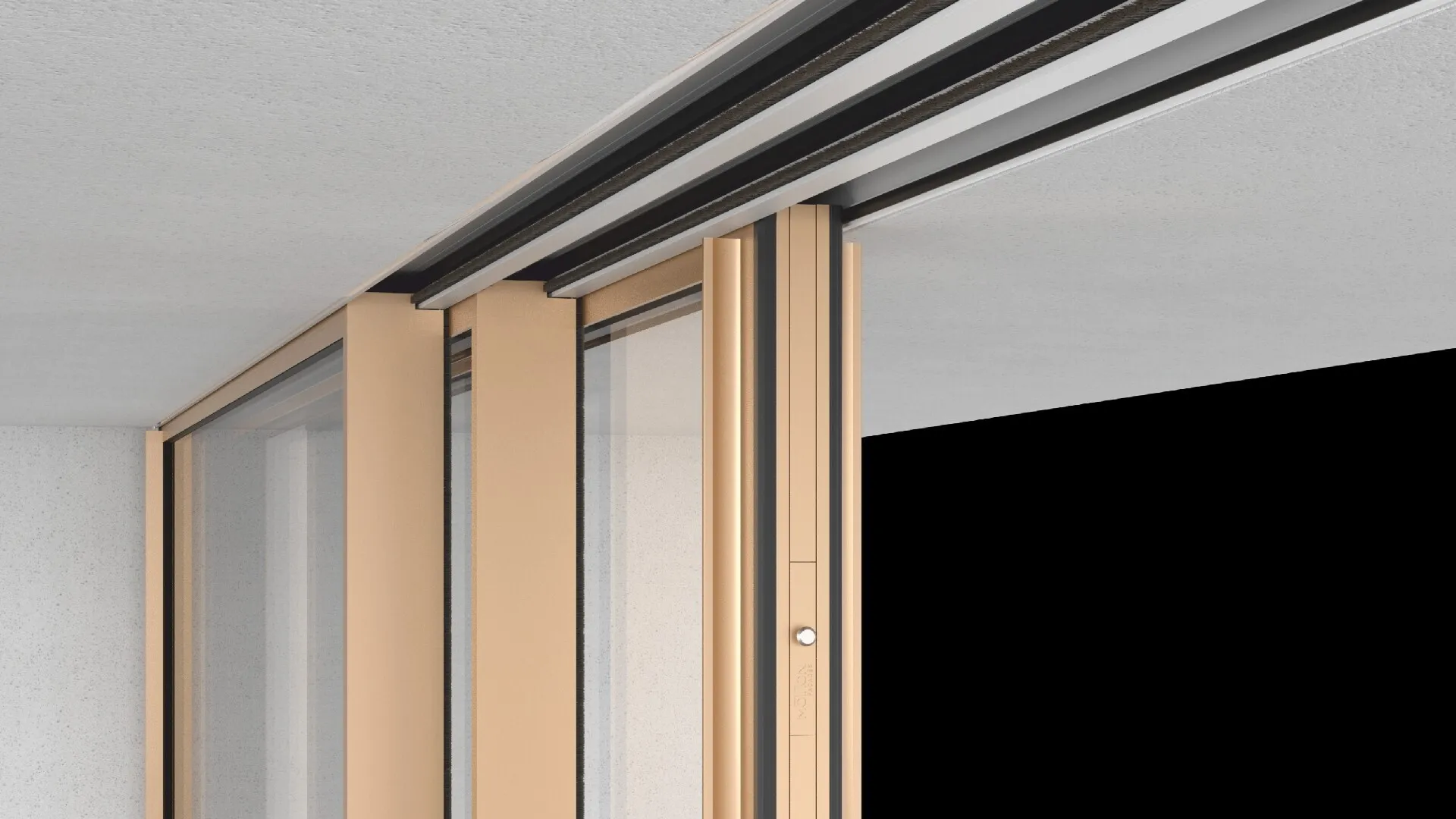

Motion 51 / 51P panels run exclusively on stainless steel wheels and running guide thus ensuring long term system durability and ease of movement. Motion 51 Plus design also incorporates top alignment rollers that are critical to panels larger than 2 meters in width.
Technical characteristics
| Frame Height, Vertical | 42 mm |
| Frame Height, Horizontal Bottom | 42 mm |
| Frame Height, Horizontal Top | 60 mm |
| Frame Width | 62 / 133 / 205 / 276 mm |
| Floor Typology | Step, Submerged |
| Riding Typology | Hovering / Submerged |
| Sash Height, Vertical | 20 / 30 mm |
| Sash Height, Horizontal | 38 / 53 mm |
| Sash Width | 47 mm |
| Centre Mullion Visible Height | 20 mm |
| Max. Weight per Sash | 600 Kg |
| Max. Sash Width | 3000 mm |
| Max. Sash Height | 4000 mm |
| Glazing Width Possibilities | 32mm |
| Glazing type | Glazing bit + Bonding |

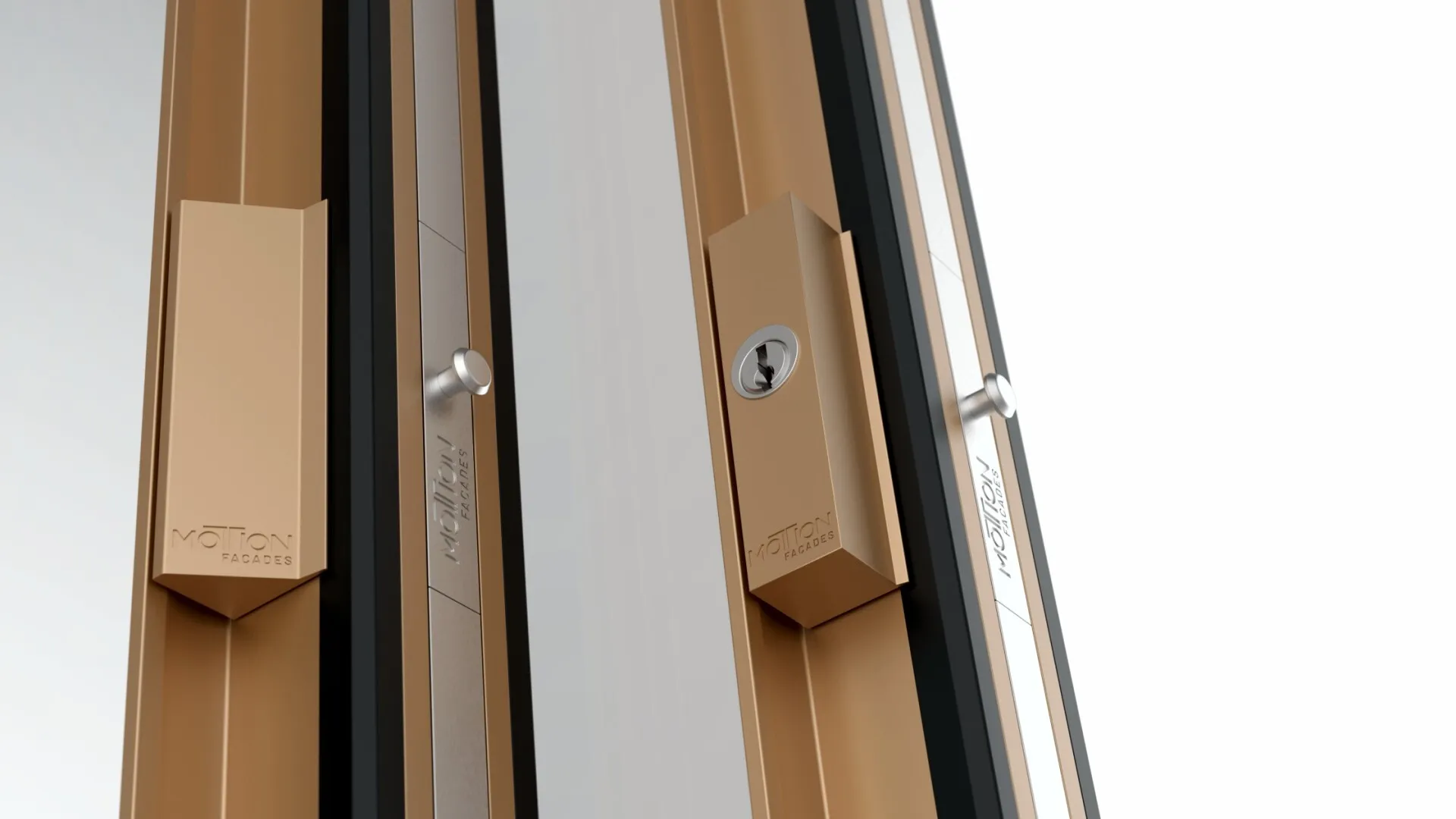

| Maximum Locking Points | 6 |
| Sealing Type | Brush with Cloth + Q-Lon |
Performances
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) |
≥1.3 W/(m2K) |
