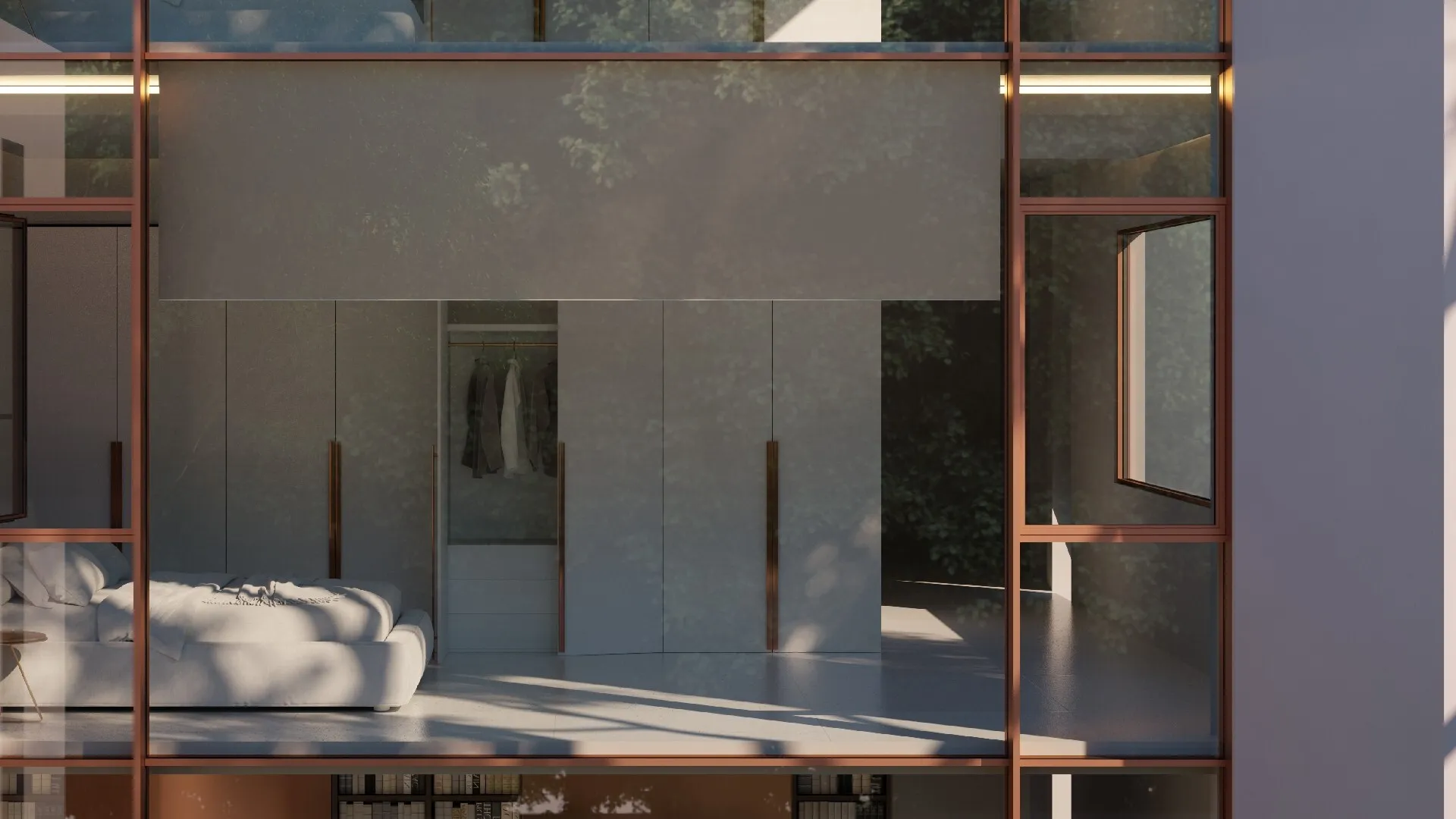

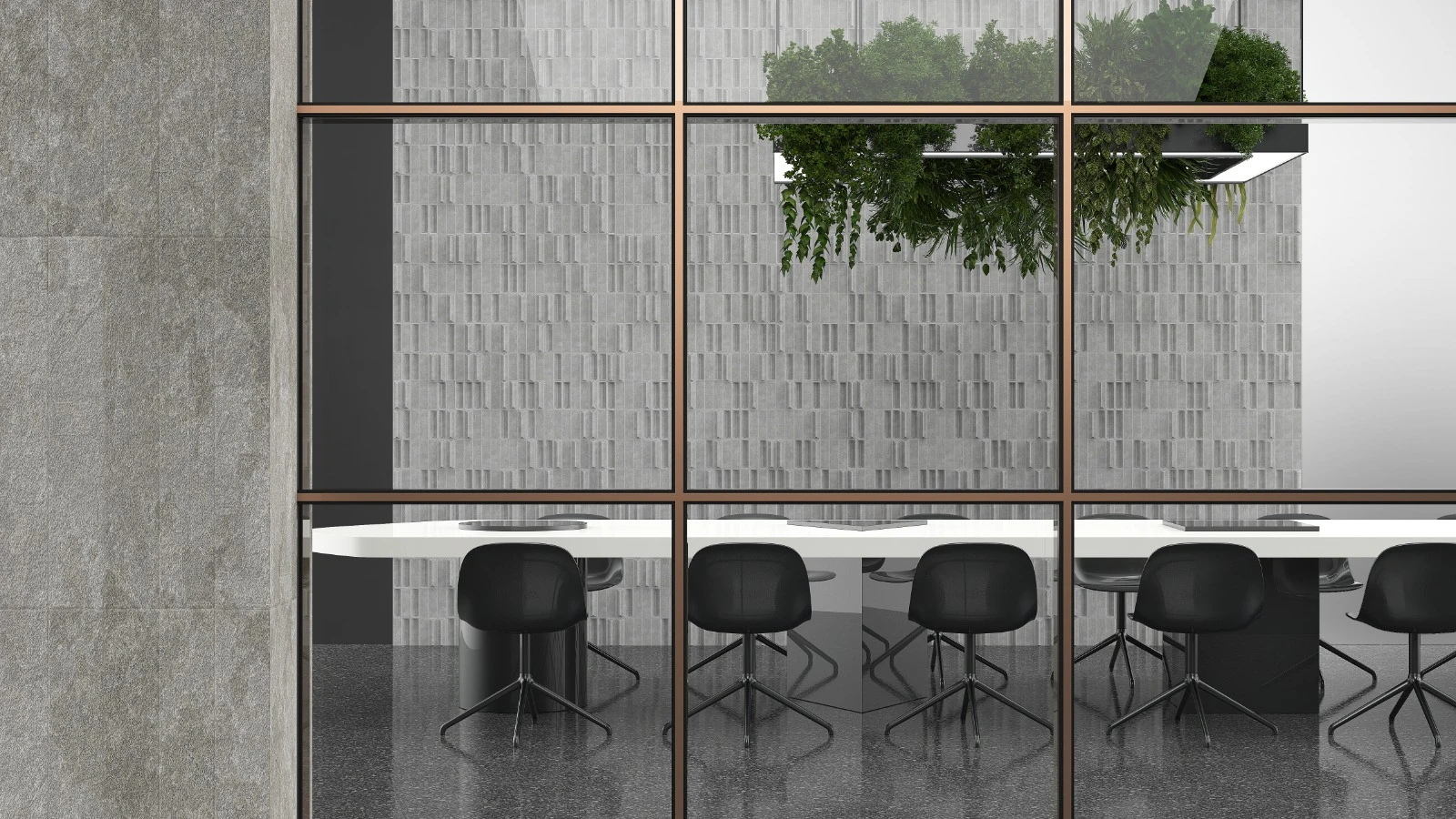

MOTION 85000 MINIMAL CURTAIN WALL SYSTEM
Motion 85000 Curtain Wall has been meticulously engineered for seamless integration with our Minimal Sliding systems (51 / 52 / 520 / 5200). Mullion depths are precisely adapted to match the corresponding frame depths, allowing the curtain wall to function as a natural extension of these systems within complex and demanding façades. By default, it accommodates a 32 mm glass pane and can be installed with Infinity Floor and Infinity Ceiling tracks to achieve a distinctive, uninterrupted aesthetic.
Three types of mullion caps are available: 20 mm, 35 mm, and a structural-style cap. The 20 mm cap is ideally matched with the sliding mullions, offering a seamless and refined visual alignment.
The Motion 85000 integrates flawlessly with Minimal Sliding systems and Minimal casement windows, ensuring a consistent visual language across the façade.
Designed for architectural continuity and precision detailing, the Motion 85000 delivers maximum design flexibility while maintaining the clean, minimal aesthetic that defines the entire Minimal system family.
Technical characteristics
| Frame Profile Height | 42 / 57 mm |
| Frame Profile Width | 133 mm |
| Center Mullion Width | 35 mm |
| Outer Cap Width | 20 / 35 mm |

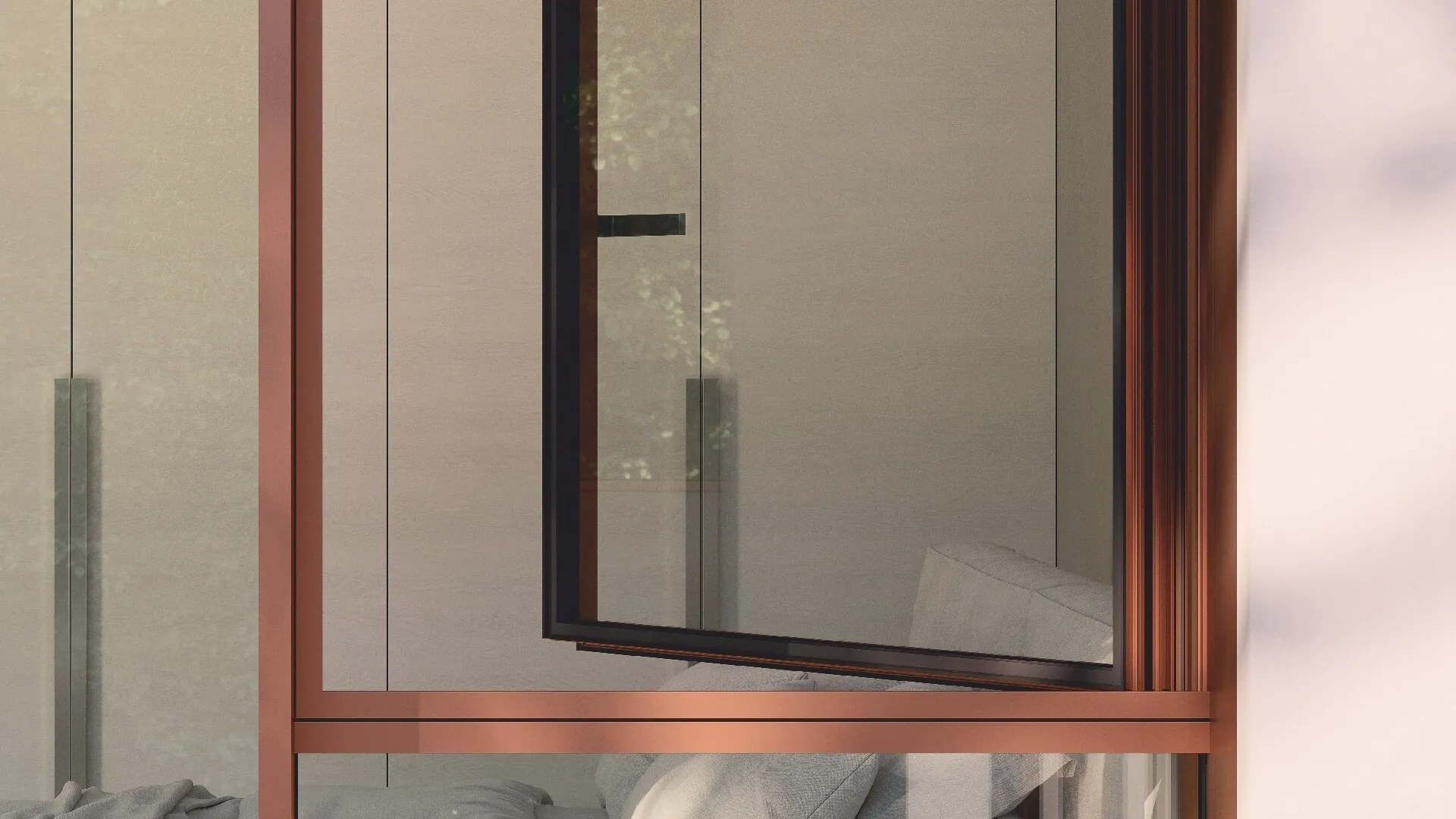

| Opening Type | Hinged / Tilt and Turn |
| Integrated Window | Available |
| Sash Profile Height | 50 / 51.5 mm |
| Sash Profile Width | 72 mm |
| Max Sash Width | 1400 mm Hinged |
| Max Sash Height | 2500 mm |
| Max Sash Weight | 150 Kg |
| Glazing Width possibilities | 32 mm |
| Max Locking Points | 9 |
Performances
| Fabrication Thermal Transmittance EN ISO 10077-2 |
(Uw) ≥1.2 W/(m2K) |
