MINIMAL SLIDING THERMAL SYSTEM

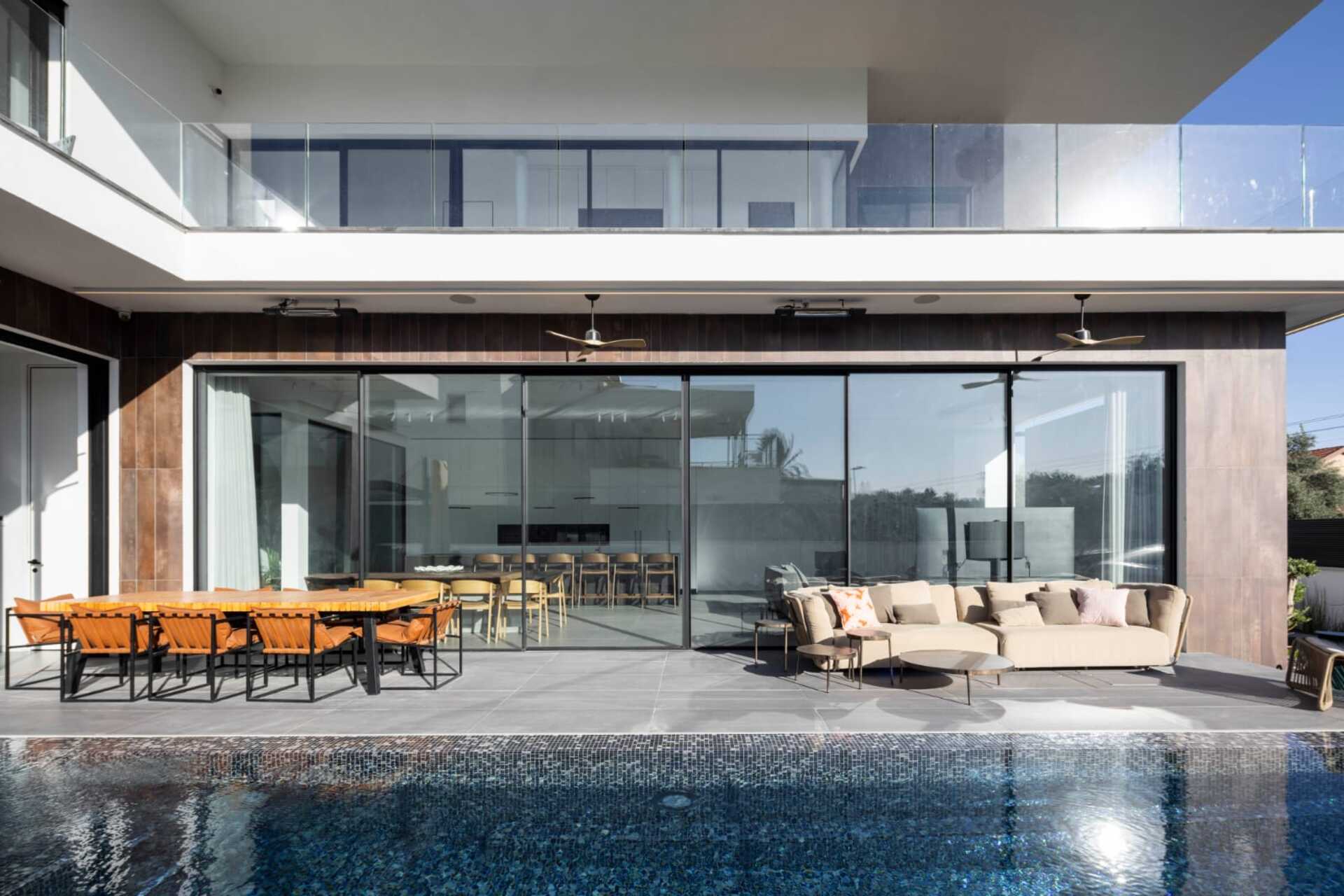

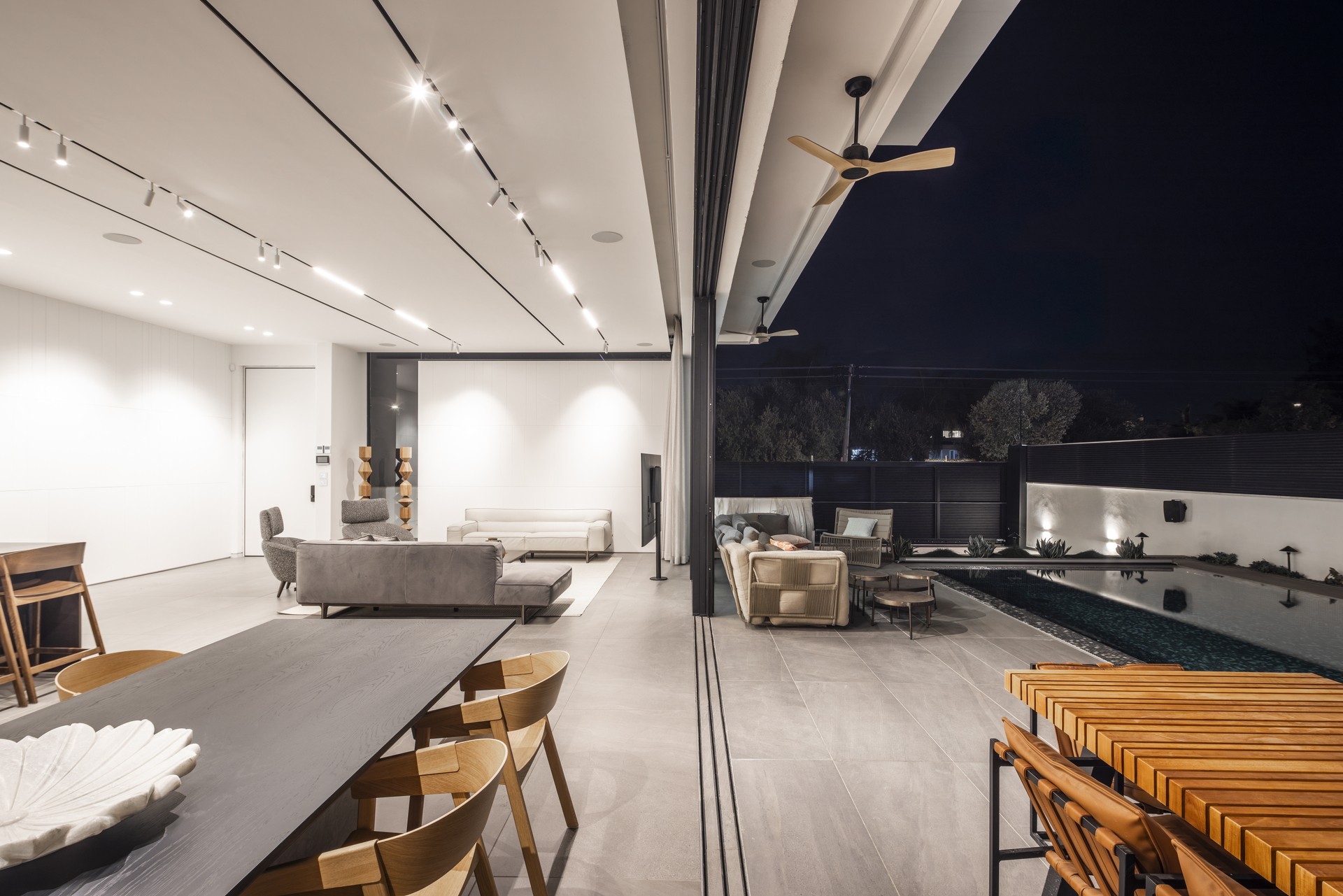

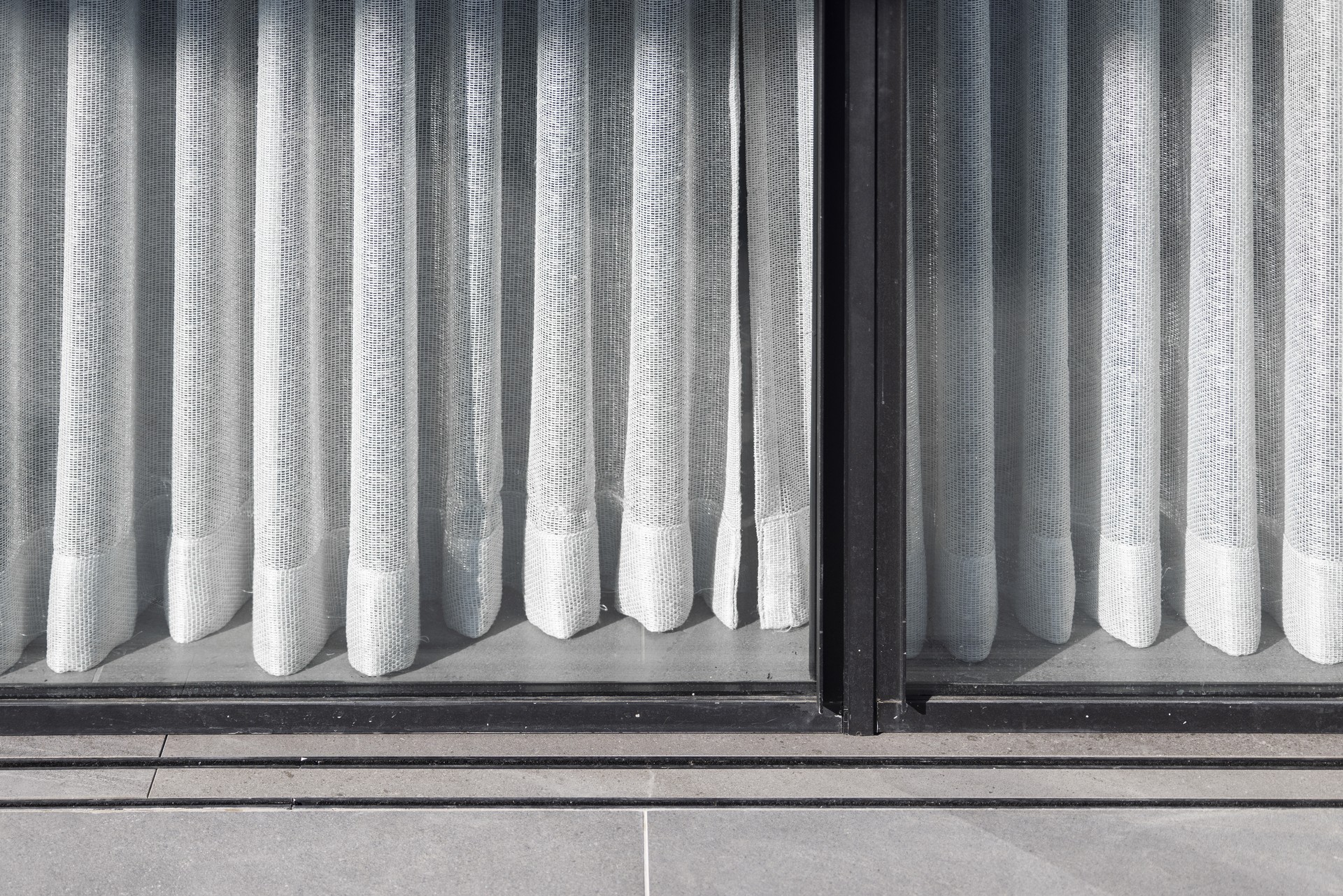

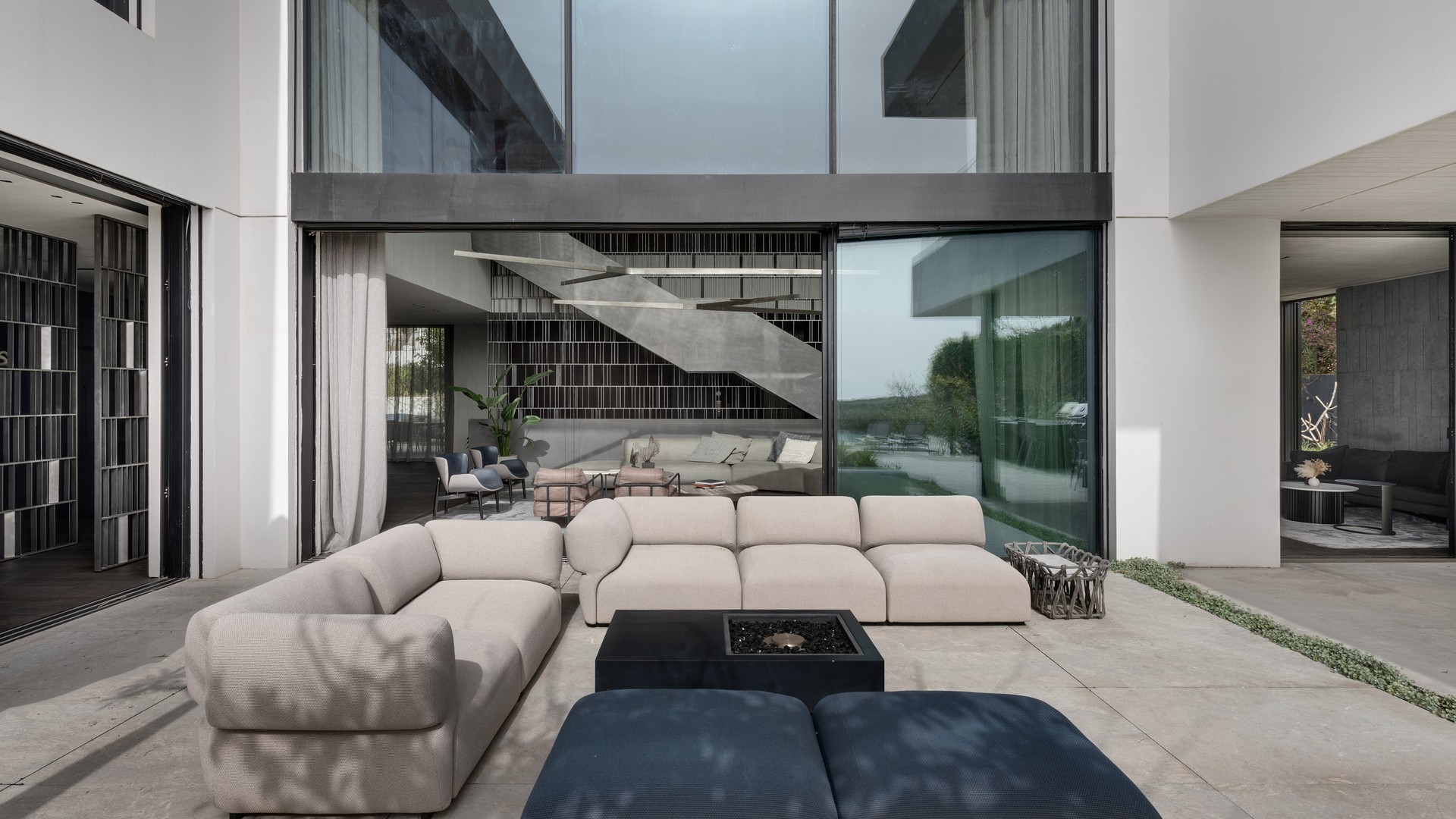

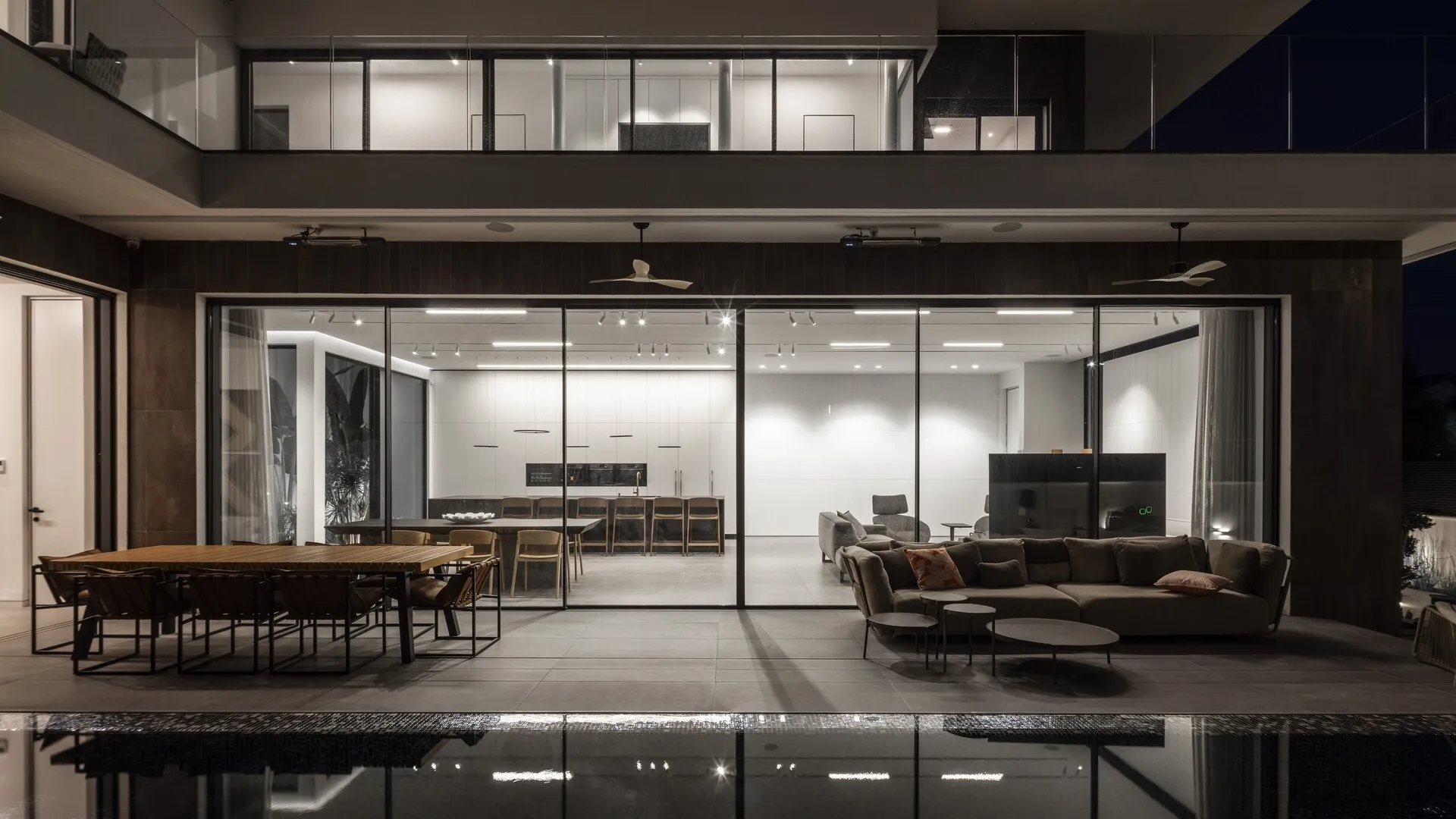

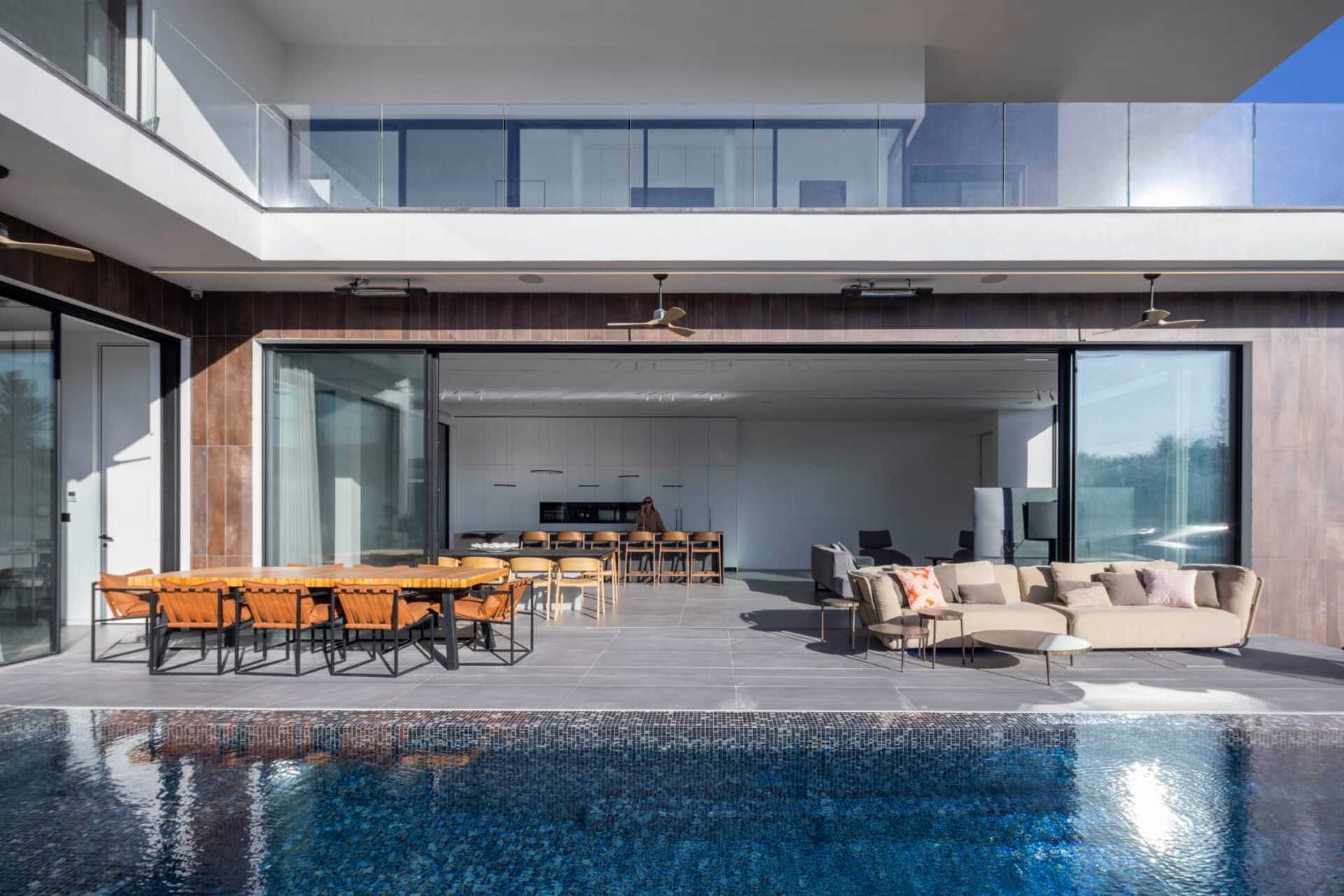

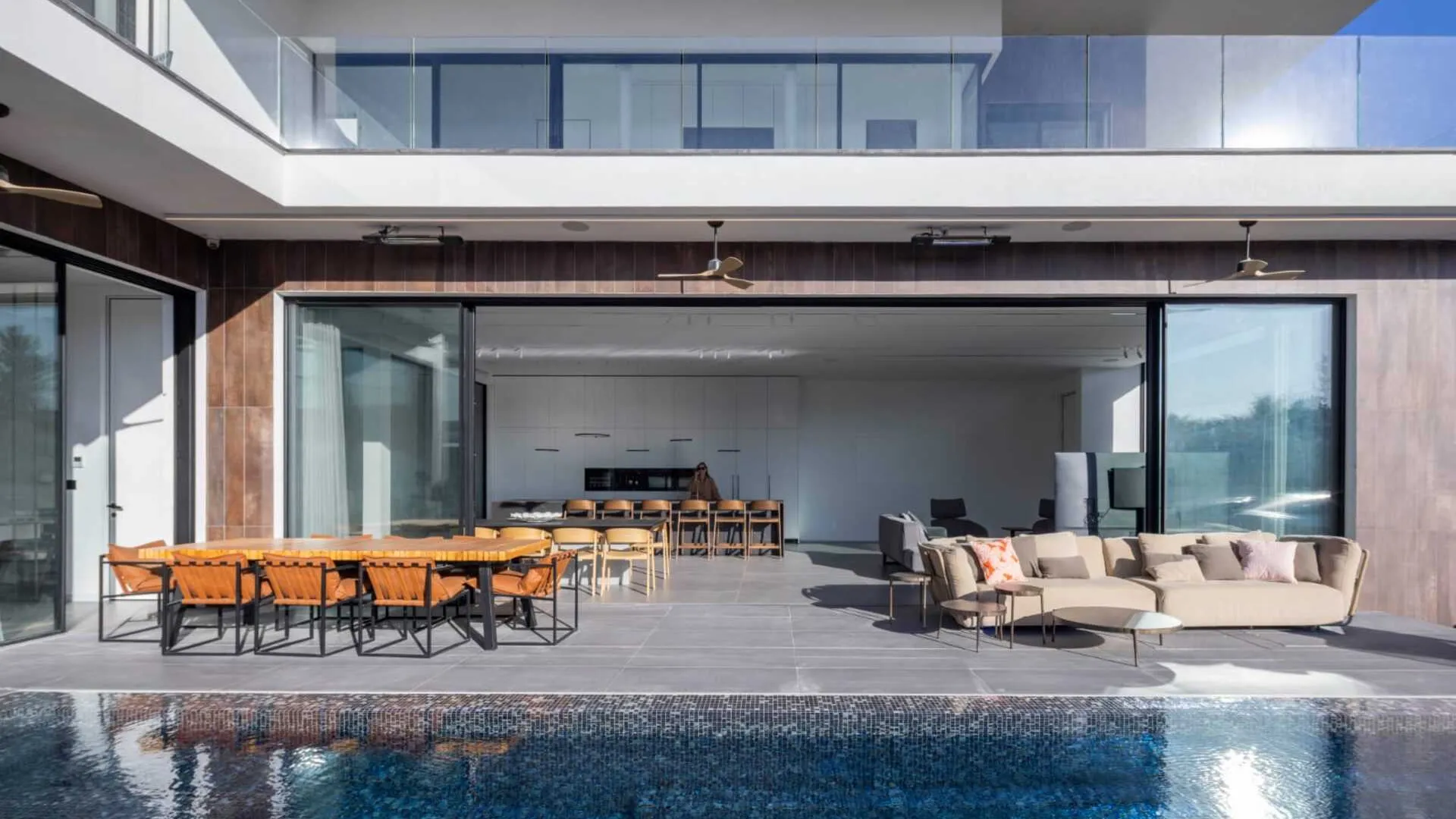

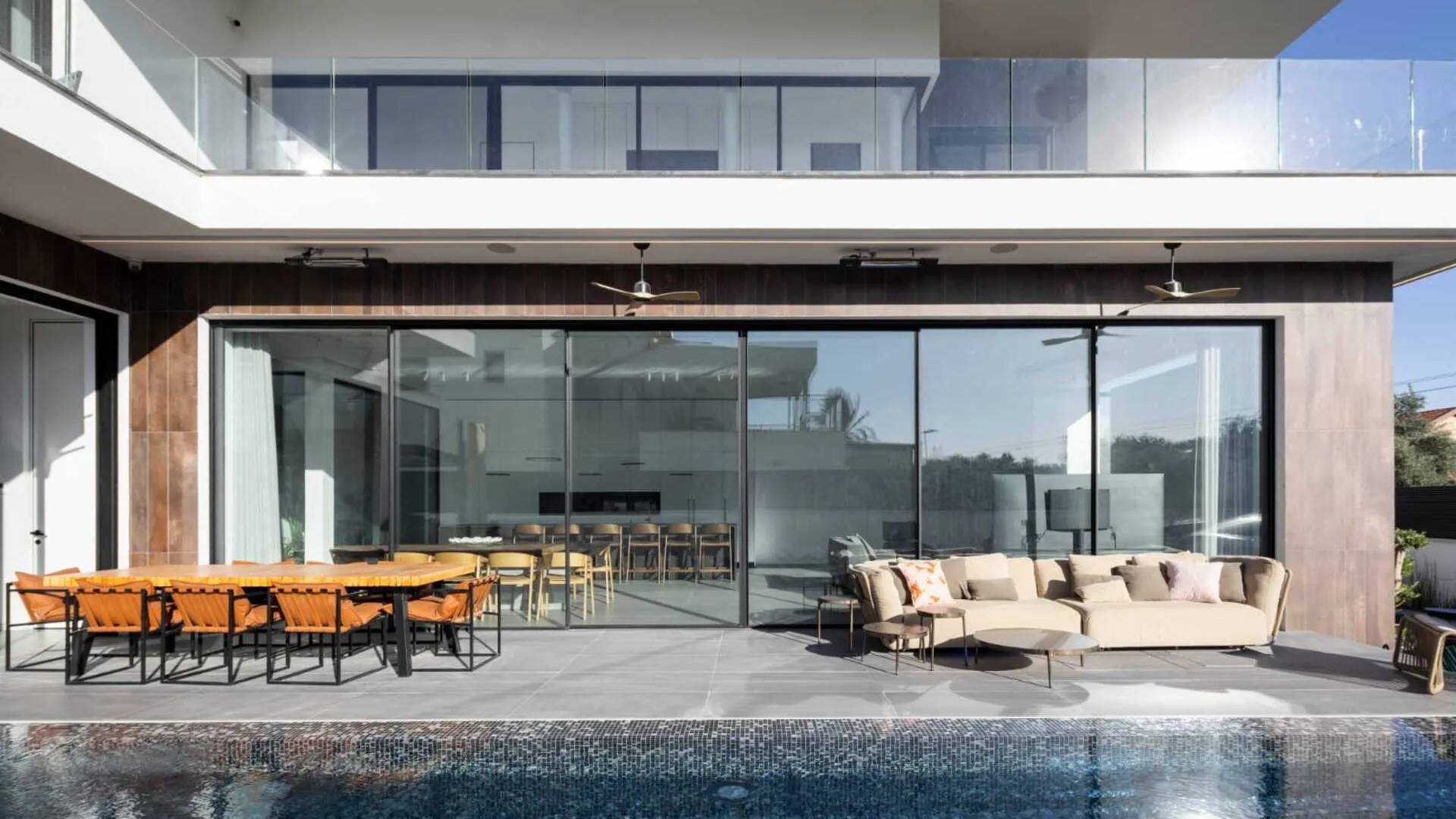

The AI minimal sliding system, Motion 640, has been engineered for the fabrication of large panels up to 6,0 meters in height and 4 meters in width. Its main application is for high end commercial and residential buildings featuring high thermal & sound insulation as well as minimal aesthetics. The system is based on a middle mullion ranging from 16-22mm in width.

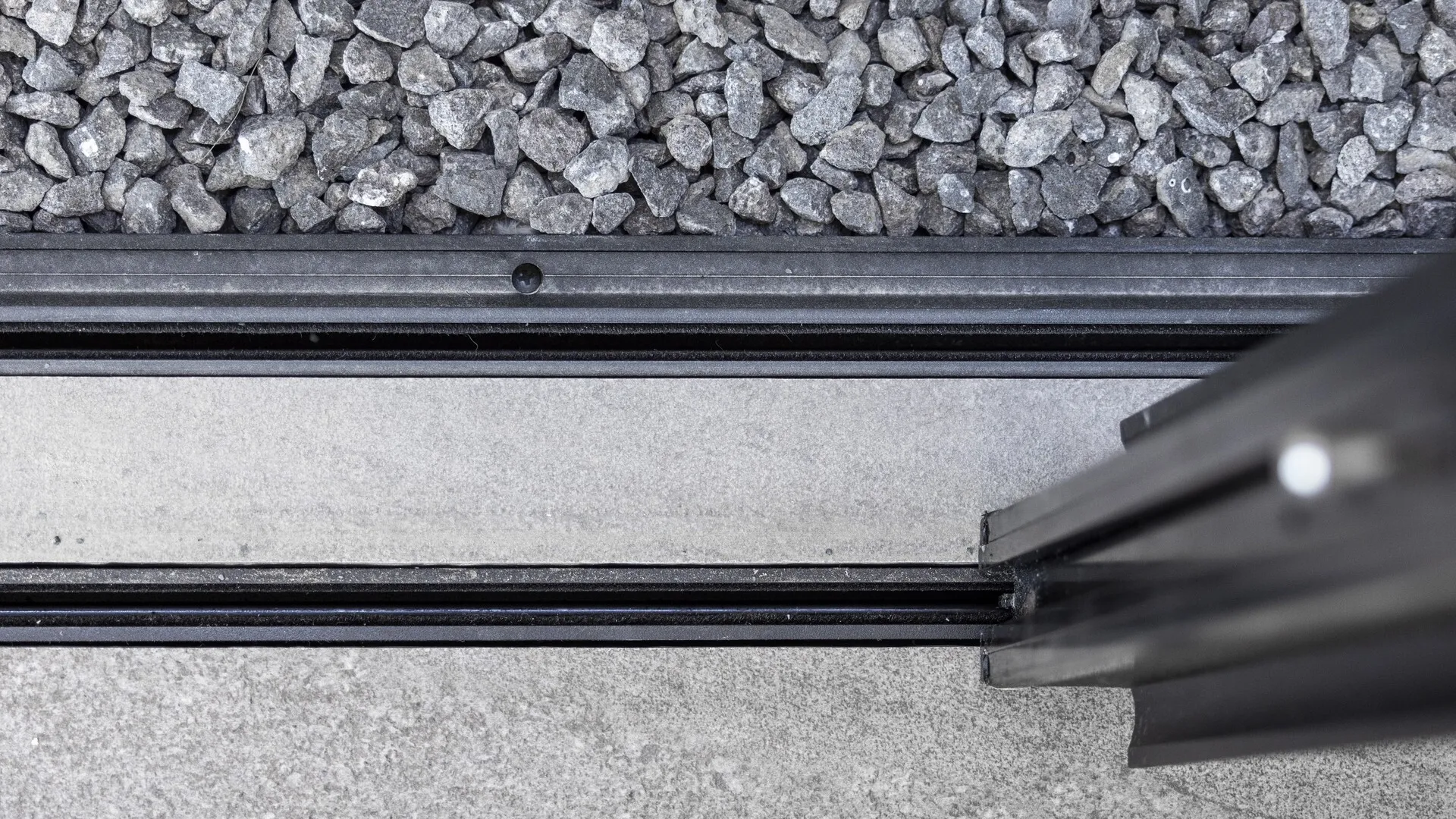

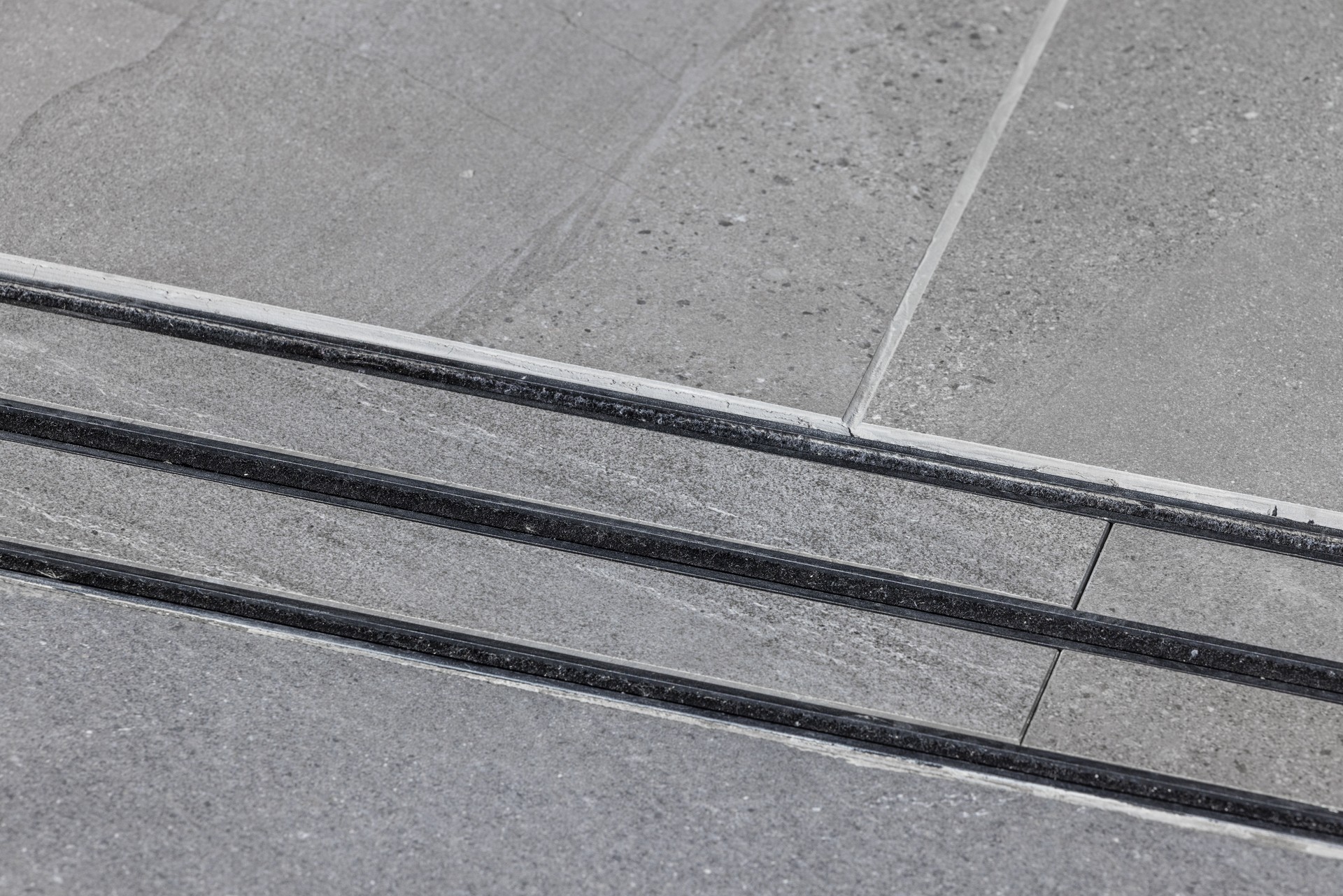

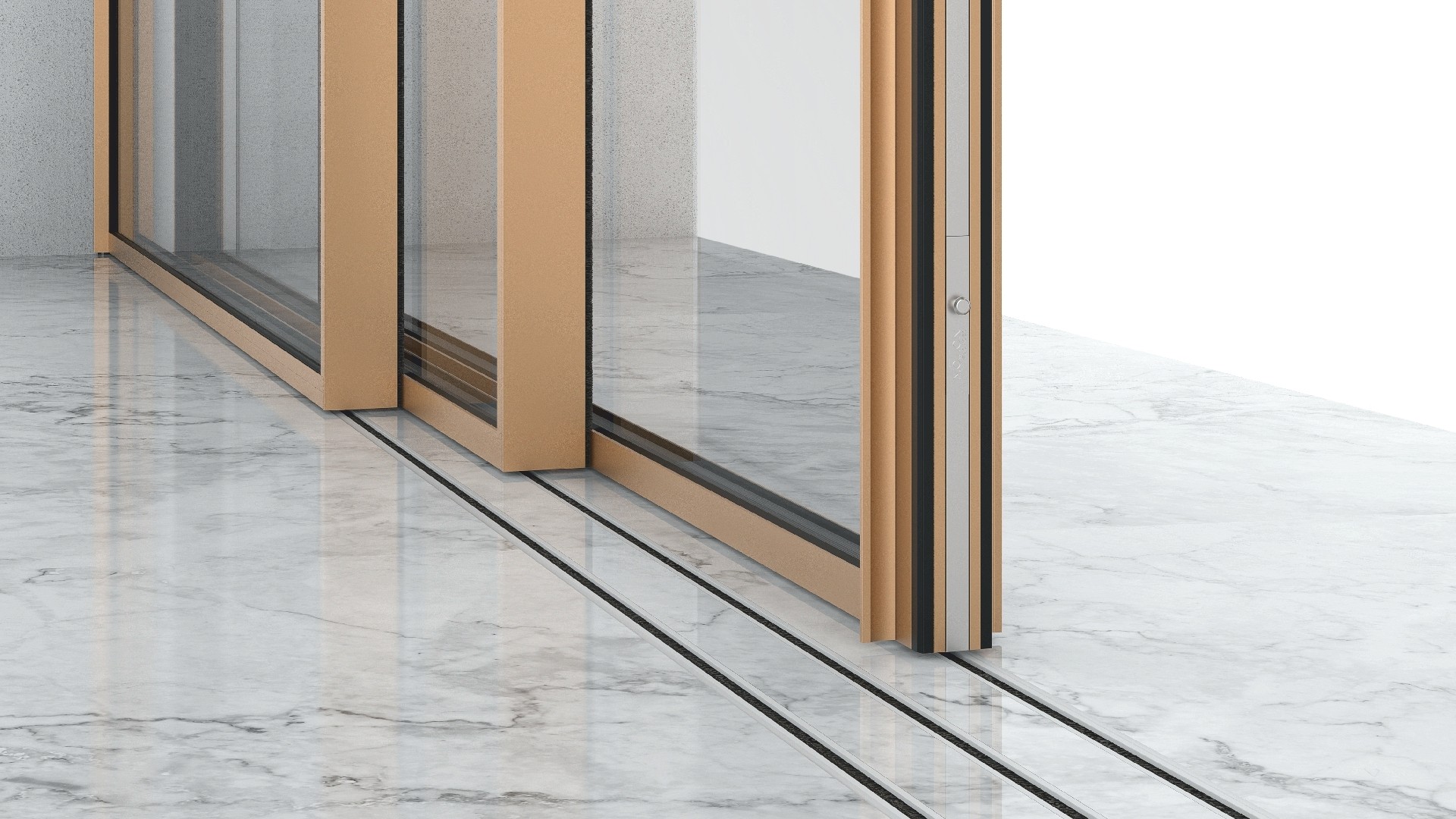

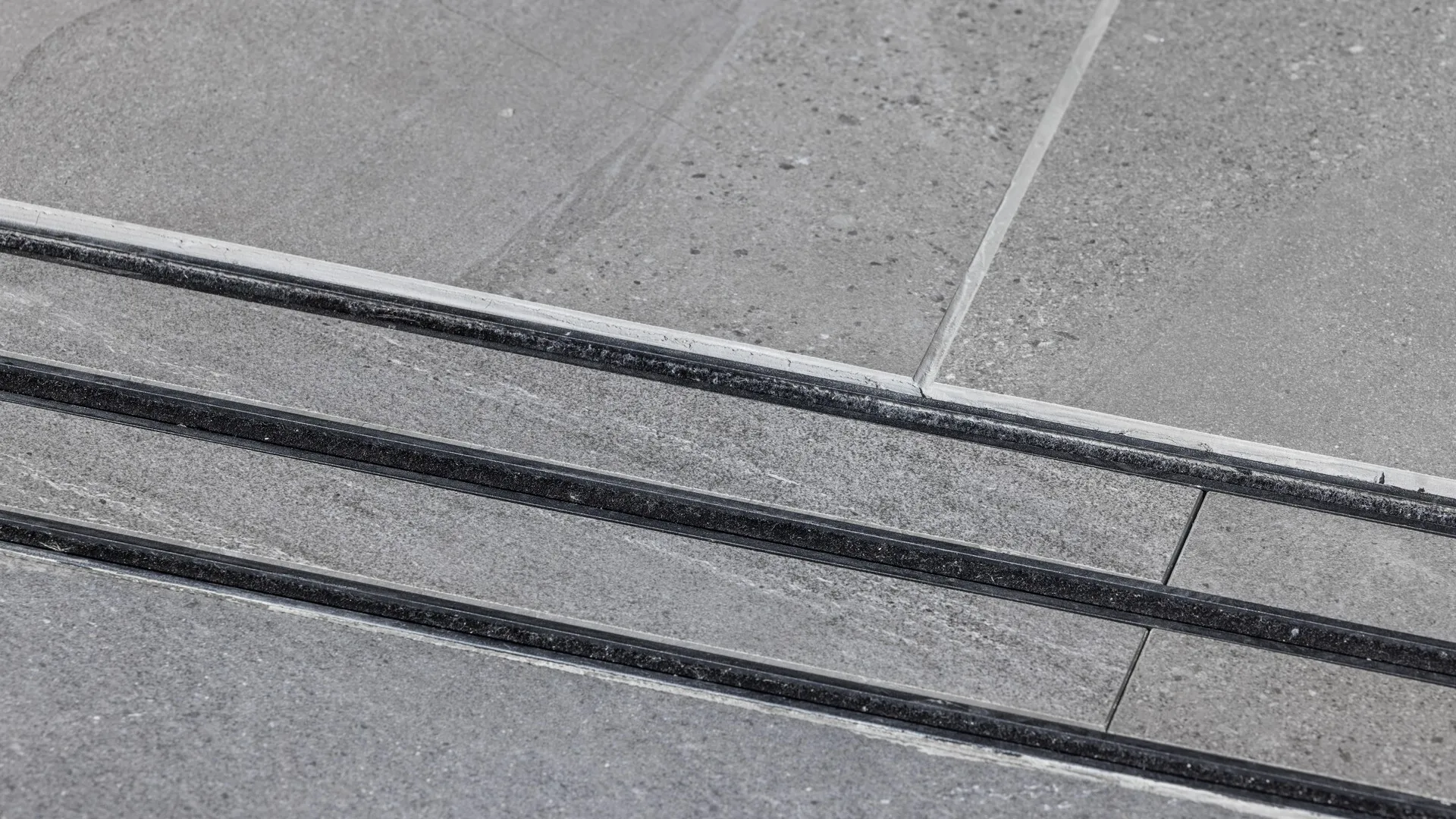

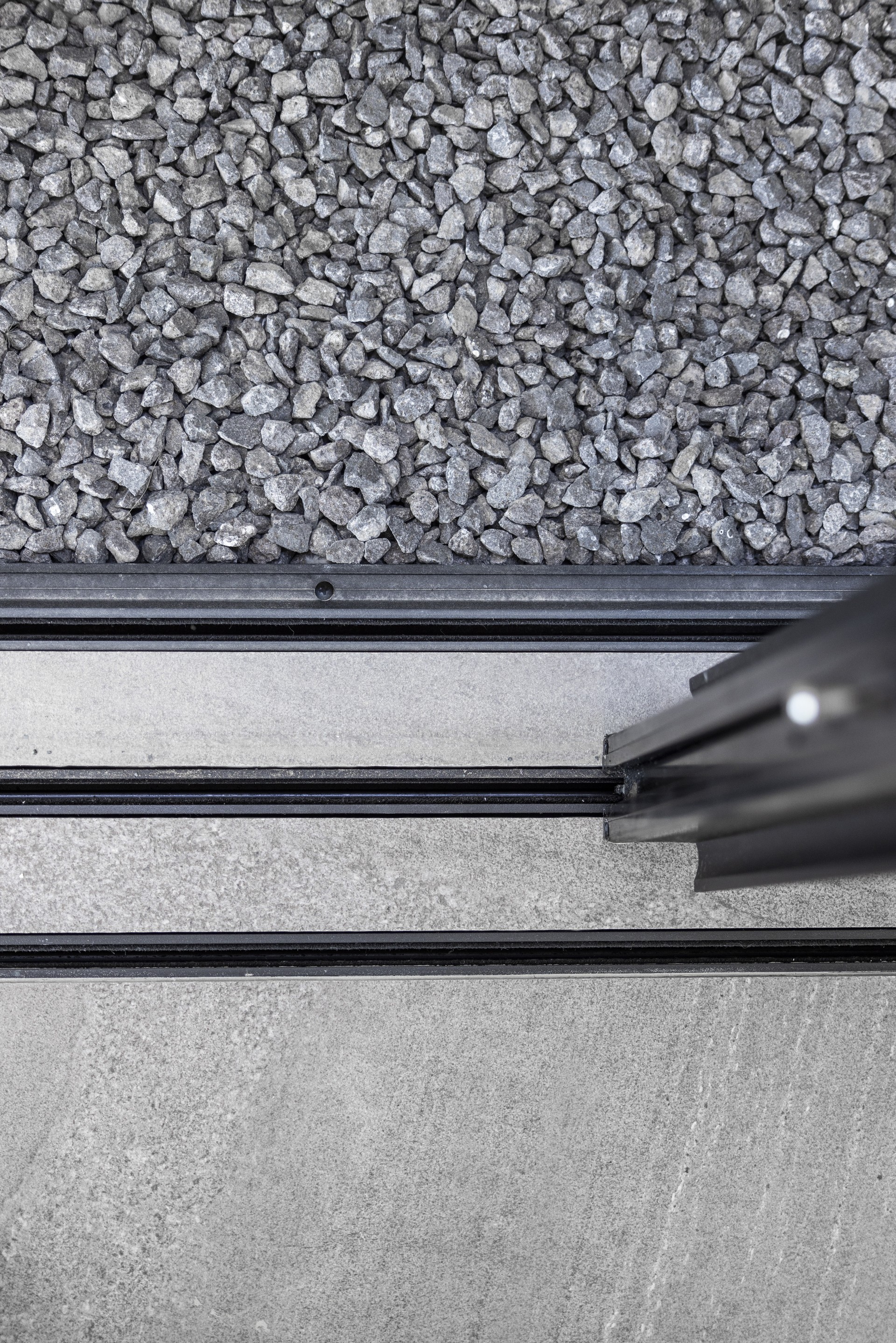

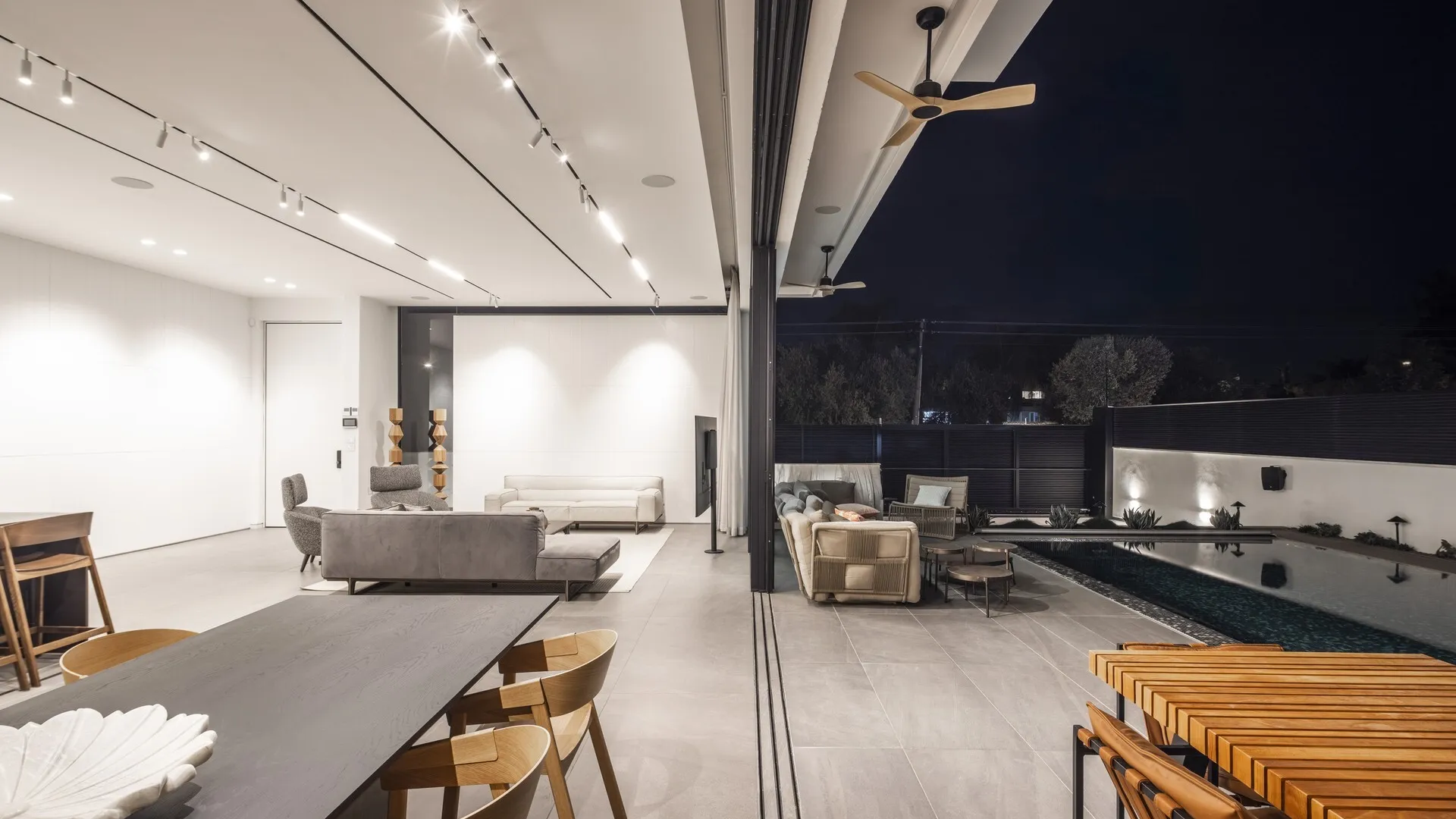

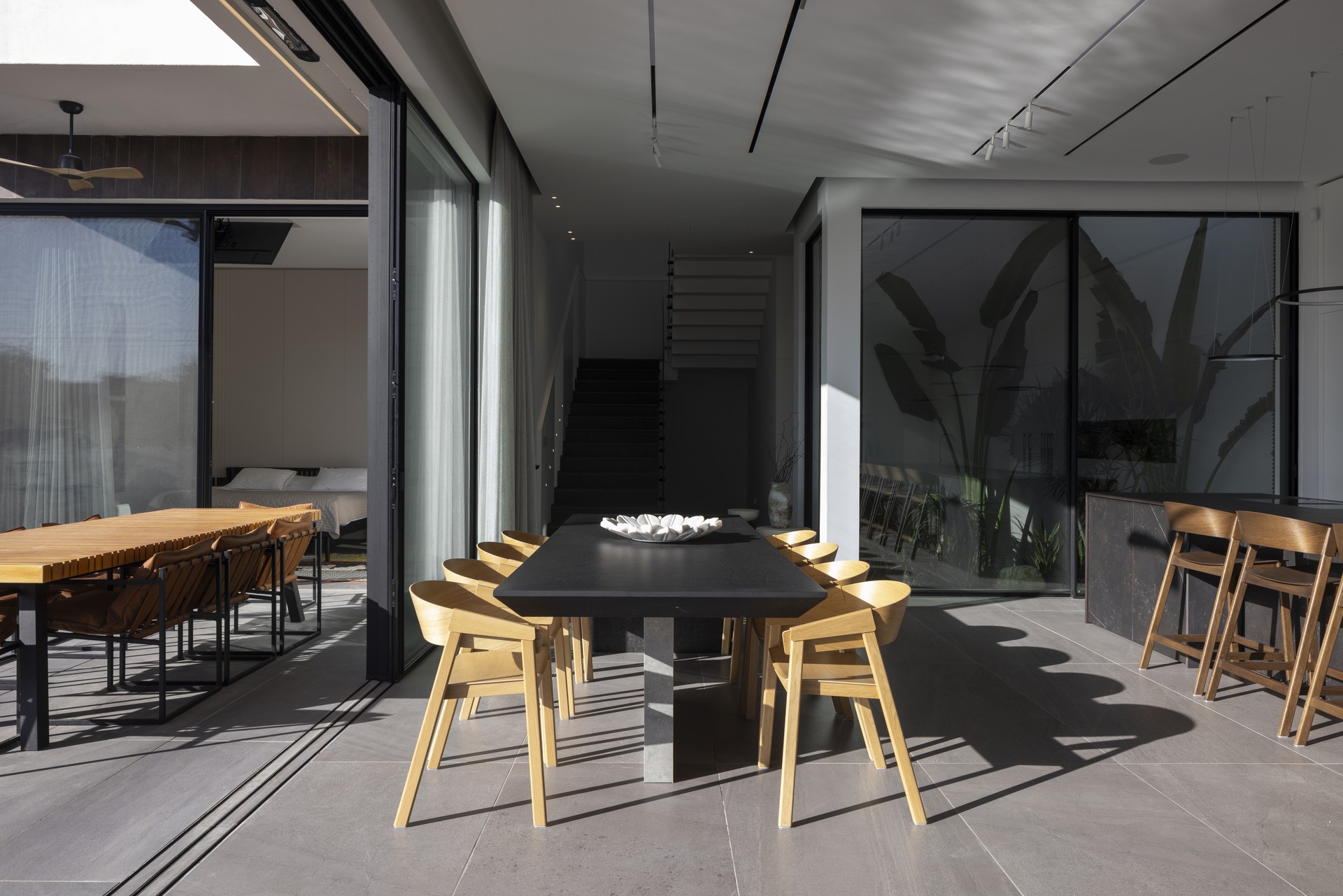

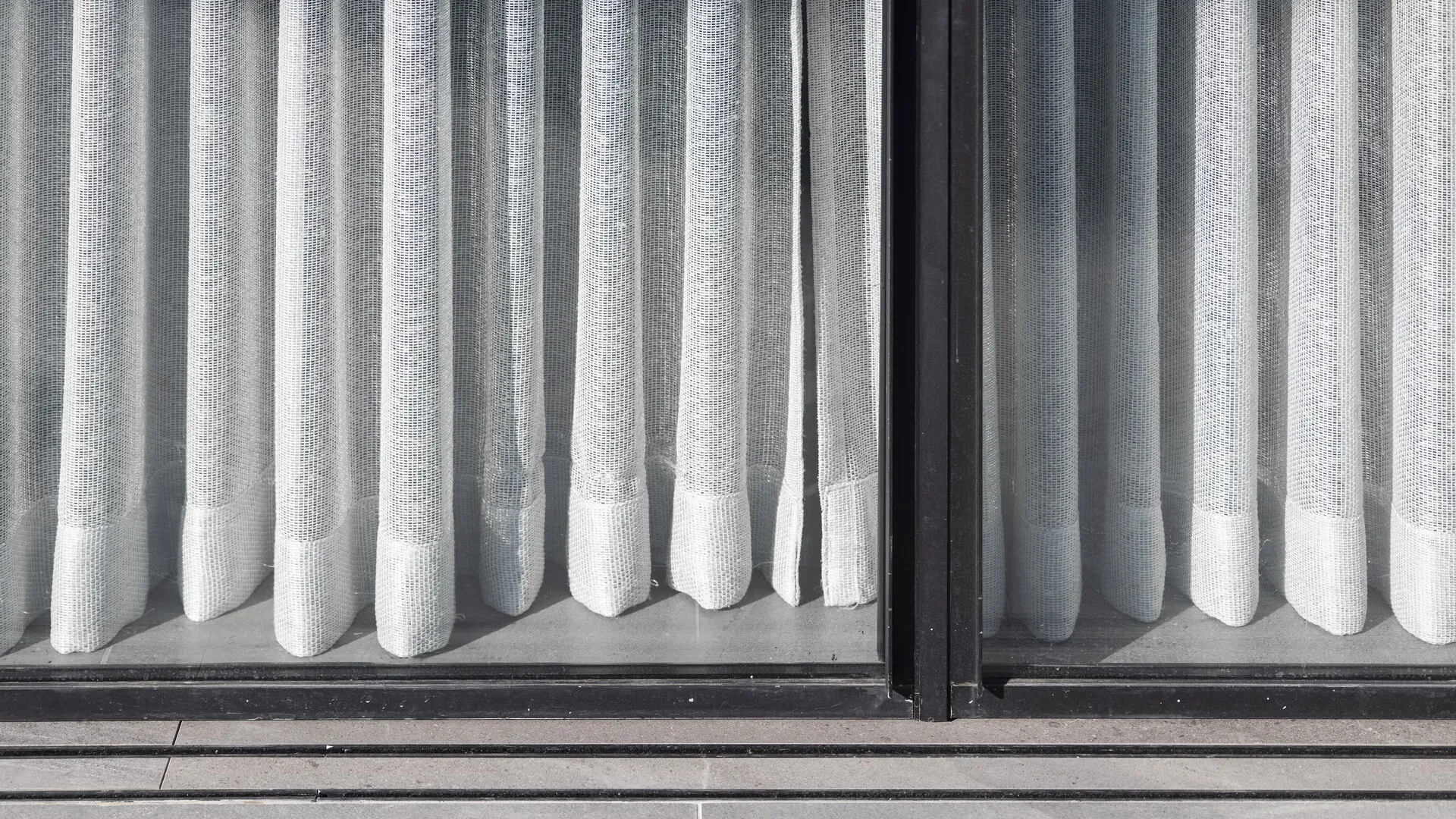

Several threshold designs are available with inline or external drainage gutter. The bottom track height is restricted to 57mm to allow trouble free installation. In its most typical application the floor is completely flat, allowing for a seamless integration between the internal and external space. As an option a step typology is also available simplifying all drainage issues.

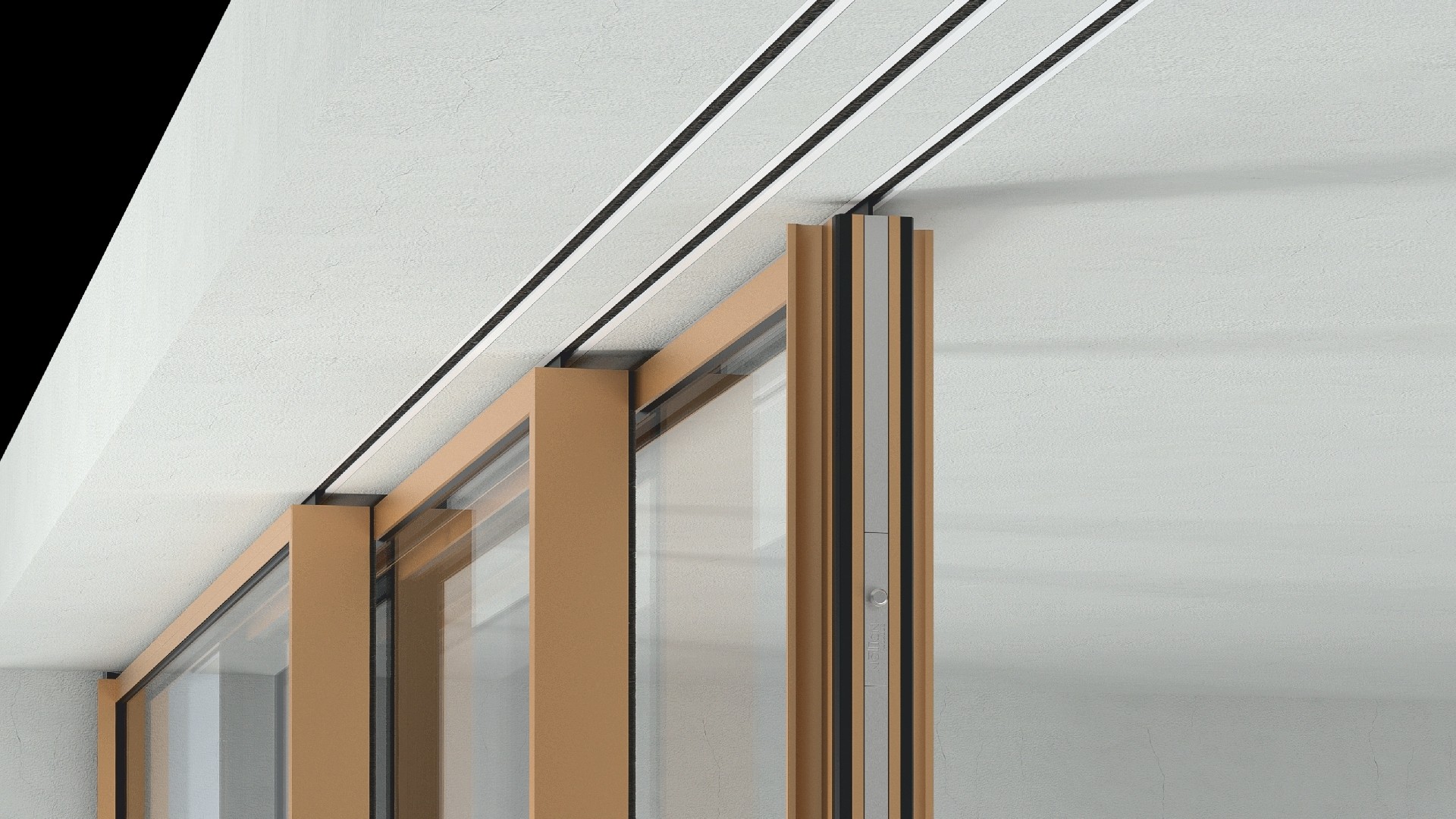

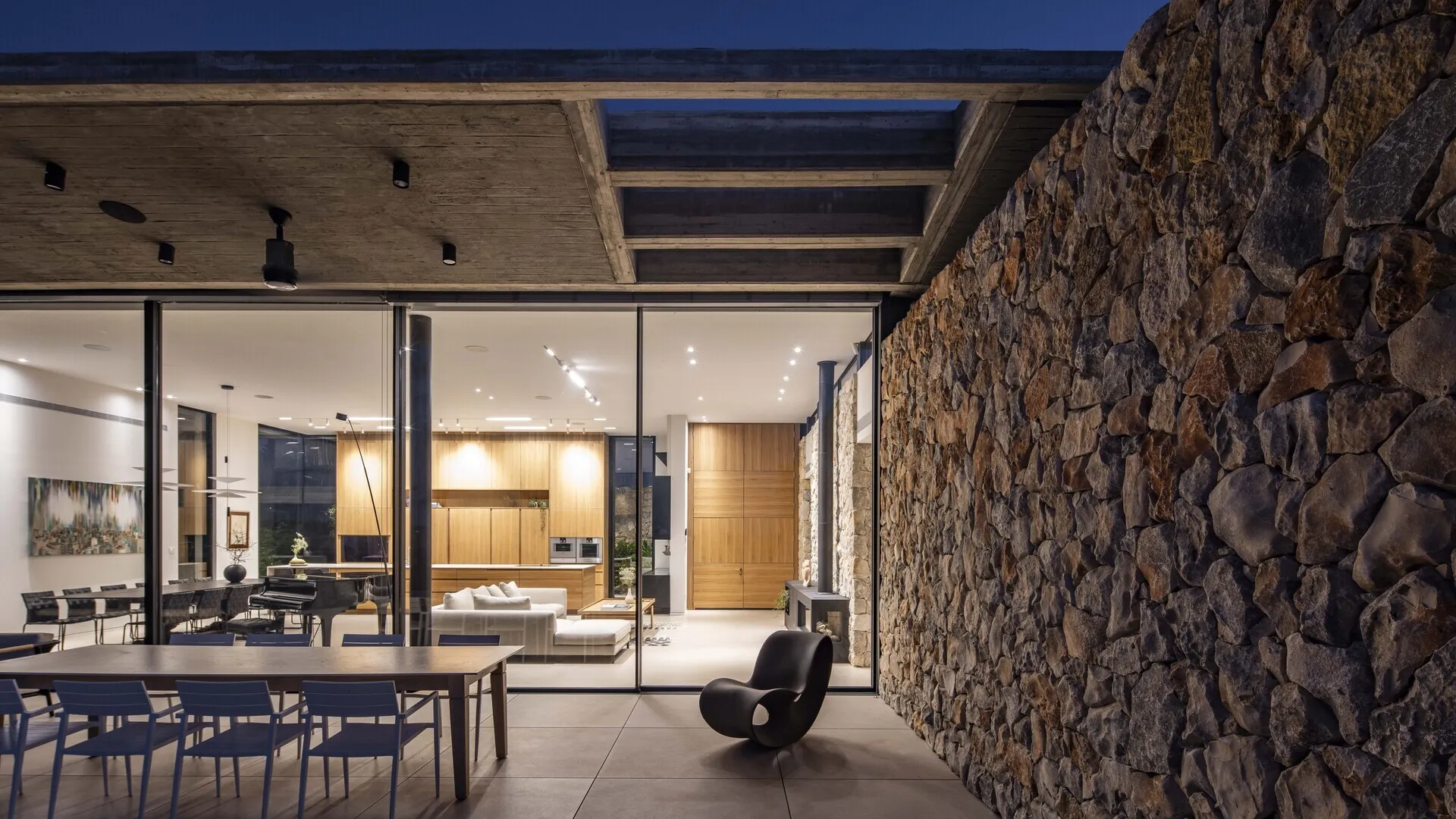

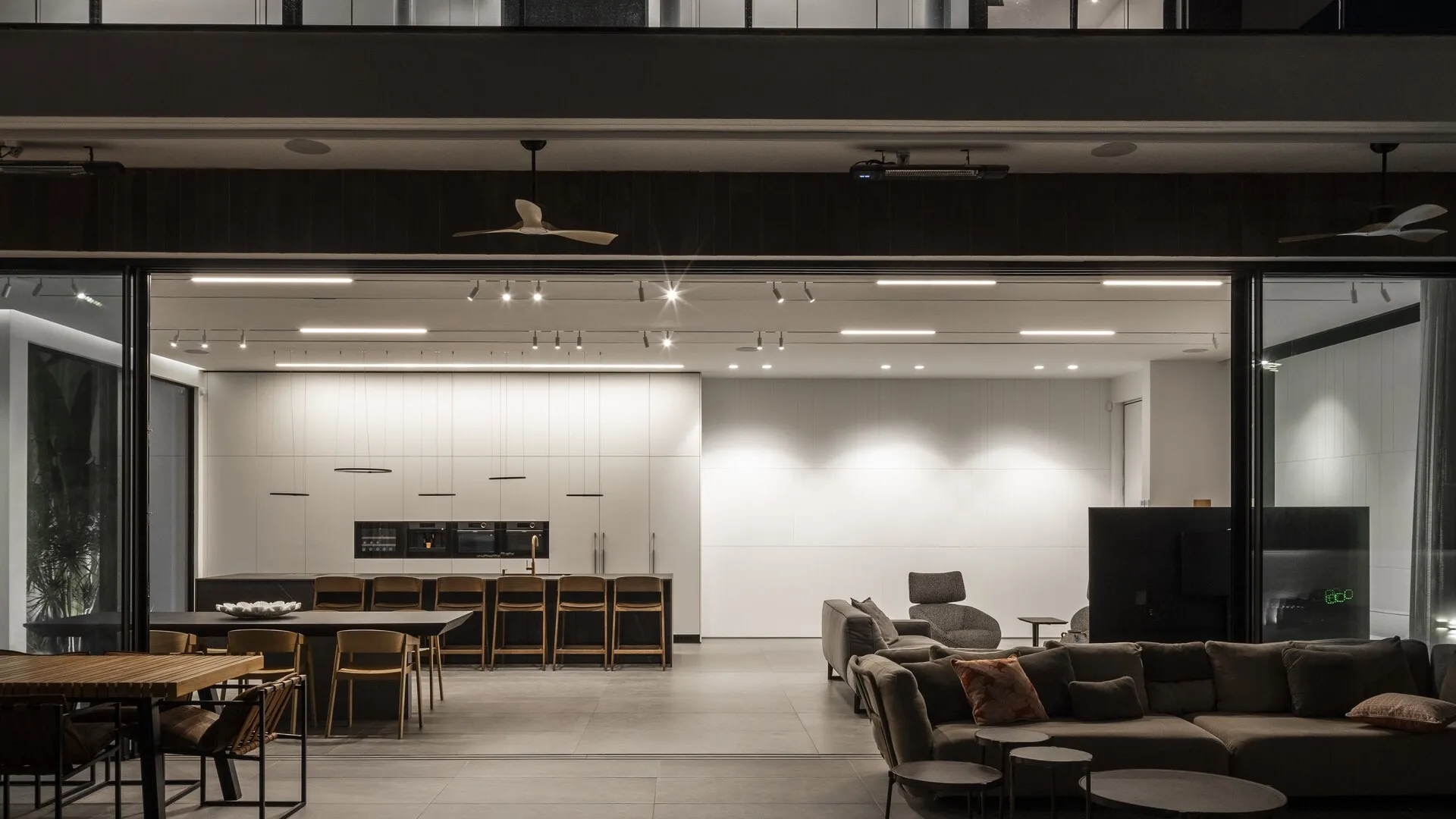

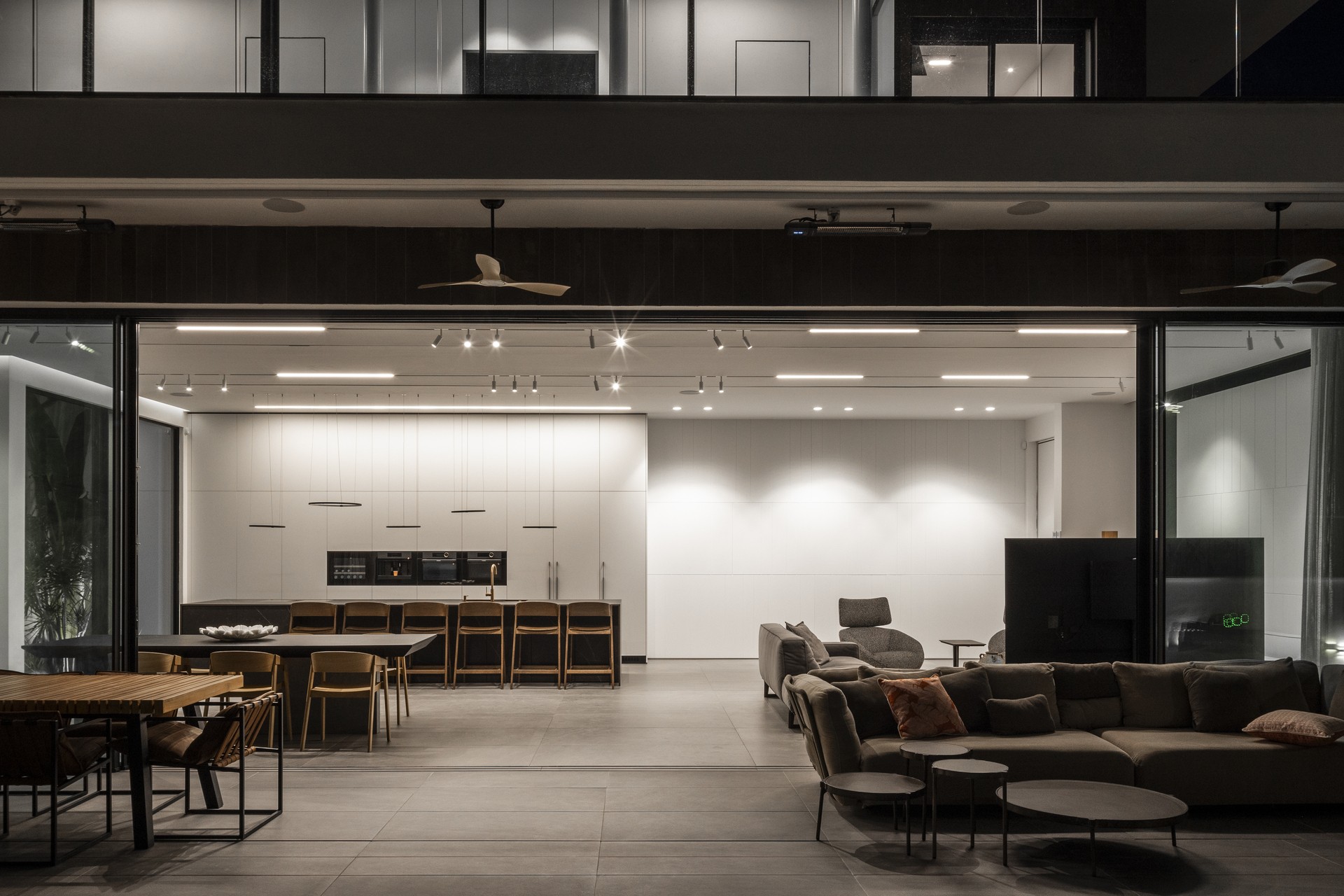

The system design supports all common typologies including pocket doors, fixed panels, open corners and reverse hook. To attain high acoustical and thermal performance the system allows the use of glasses up to 46mm in width.
Technical characteristics

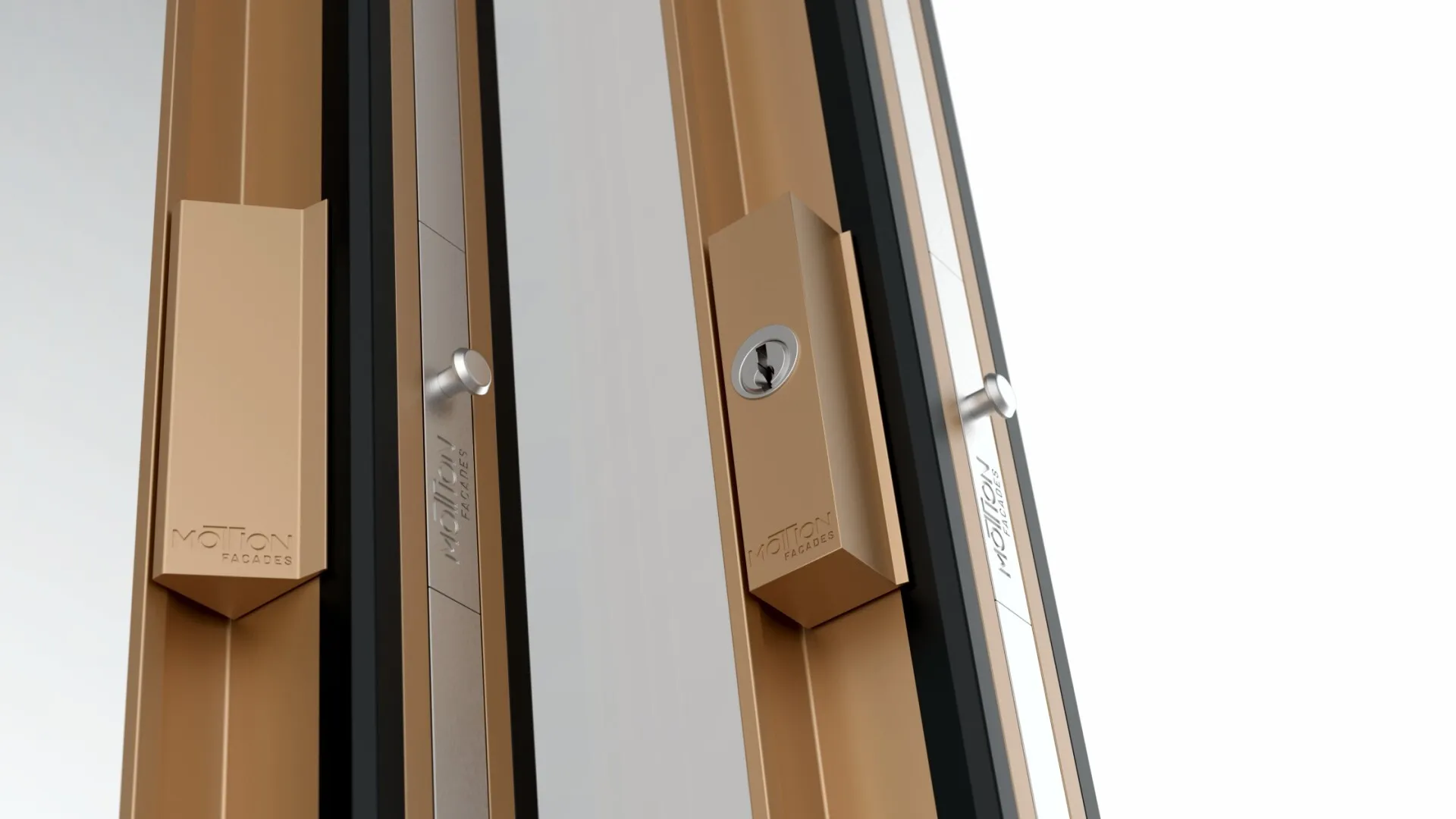

| Frame Height, Vertical | 42 mm |
| Frame Height, Horizontal Bottom | 57 / 67 mm |
| Frame Height, Horizontal Top | 52 / 60 mm |
| Frame Width | 74 / 157 / 240 / 324 mm |
| Tile Insert | ≥20 mm |
| Floor Typology | Step, Submerged |
| Riding Typology | Blade |
| Sash Height, Vertical | 22 / 30 mm |
| Sash Height, Horizontal | 29 mm |
| Sash Width | 59 mm |
| Centre Mullion Visible Height | 22 mm |
| Max. Weight per Sash | 1200 Kg |
| Max. Sash Width | 4000 mm |
| Max. Sash Height | 6000 mm |
| Glazing Width Possibilities | 36-38, 44-46 mm |
| Glazing type | Glazing bit + Bonding |
| Maximum Locking Points | 6 |
| Sealing Type | Brush with Cloth + Q-Lon |
Performances
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) |
≥0.9 W/(m2K) |
