MOTION 920 MINIMAL CASEMENT SYSTEM
Motion 920 is a minimal casement system meticulously engineered to meet the demands of contemporary minimalist architecture. With an outer visible frame of just 27 mm, it delivers exceptionally slim sightlines without compromising performance.
The outer part of the sash is entirely manufactured from polyamide, delivering best-in-class thermal performance for double-glazed configurations. An integrated architectural groove enhances the floating window effect while discreetly accommodating hidden drainage, preserving the system’s clean aesthetic.
Motion 920 is designed to support glass panes weighing up to 150 kg, utilizing fully concealed hardware for a seamless appearance. A selection of minimalist handles without rosettes is offered as standard, available with or without key locking.

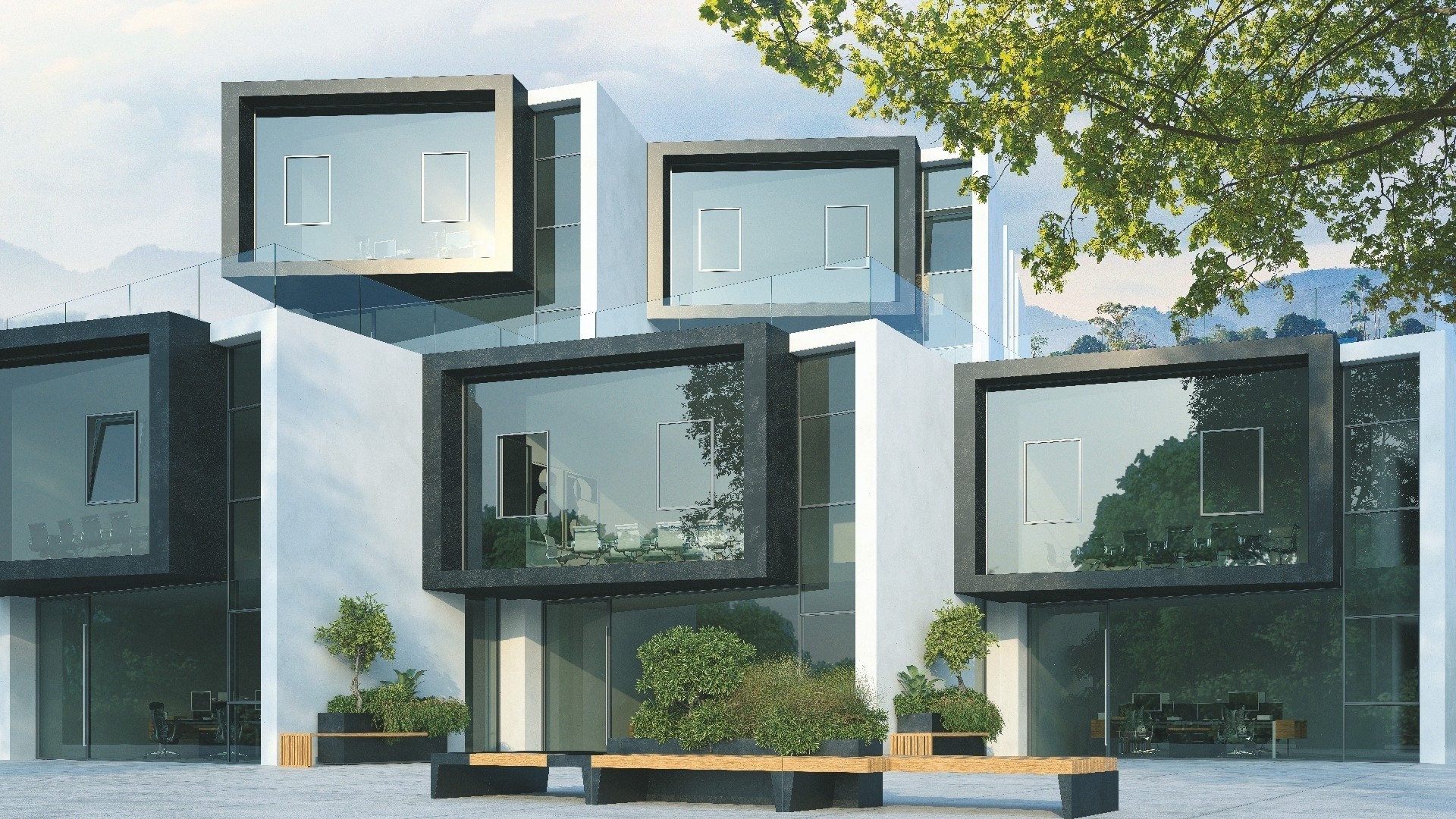

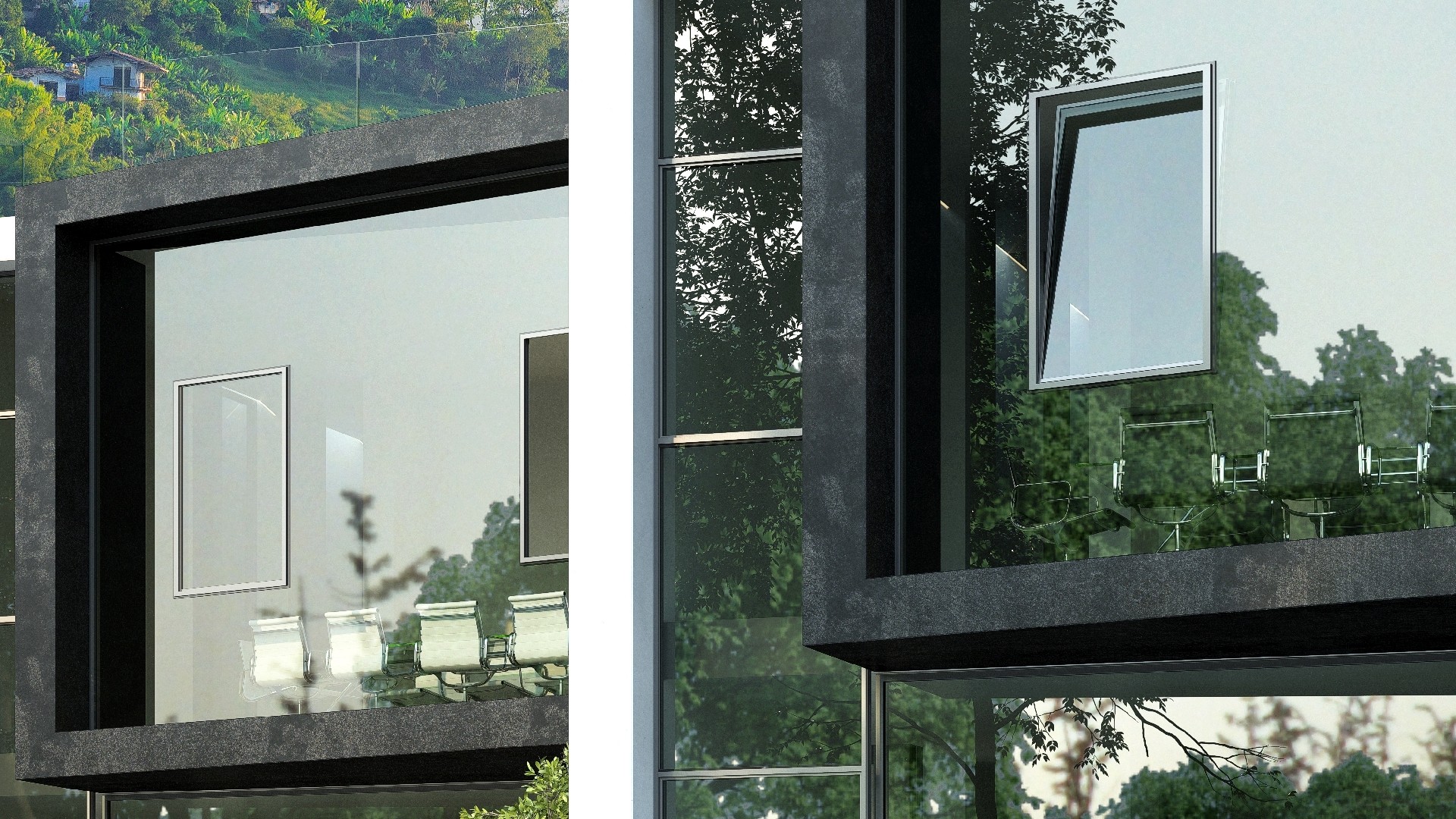

Beyond the classic tilt-and-turn configuration, Motion 920 supports a comprehensive range of opening typologies, including hinged, projecting, tilting, and French double-leaf designs. All configurations are available for both inward- and outward-opening sashes, ensuring exceptional design flexibility while maintaining visual consistency across the façade.
The system also extends effortlessly into door applications, incorporating bespoke stainless-steel multi-point locking systems for enhanced security and long-term durability.
With its precision engineering, superior thermal efficiency, and ultra-slim profiles, Motion 920 is the ideal solution for projects that demand refined aesthetics and high technical performance.
Technical characteristics
| Frame Profile Height | 45/52 mm |
| Frame Profile Width | 86 mm |
| Sash Profile Height | 50 mm |
| Sash Profile Width | 72 mm |
| External Frame-Sash visible face impression | 27 mm |
| Internal Frame-Sash visible face impression | 56.5 mm |
| External T-Joint-Sash visible face impression | 43 mm |
| Internal T-Joint-Sash visible face impression | 59.5 mm |
| Opening Type | Hinged, Tilt and Turn, Outward |
| Max sash width | 1600 mm |
| Max sash height | 2500 mm |
| Max Sash weight | 150 Kg |
| Glazing width possibilities | 32 mm |
| Max Locking Points | 9 |
| Thermal Break width | 30 / 35 |
| Sealing Type | 3 Gasket layers |
Performances
| Fabrication Thermal Transmittance | ≥0.9 W/(m2K) |
