MOTION 64

MINIMAL SLIDING THERMAL SYSTEM

Technical characteristics

Frame Height, Vertical 42 mm
Frame Height, Horizontal Bottom 57 mm
Frame Height, Horizontal Top 52 / 60 mm
Frame Width 74 / 157 / 240 / 324 mm
Floor Typology Step, Submerged
Riding Typology Blade
Sash Height, Vertical 22 / 30 mm
Sash Height, Horizontal 29 mm
Sash Width 59 mm
Centre Mullion Visible Height 22 mm
Max. Weight per Sash 1200 Kg
Max. Sash Width 4000 mm
Max. Sash Height 6000 mm
Glazing Width Possibilities 36-38, 44-46 mm
Glazing type Glazing bit + Bonding

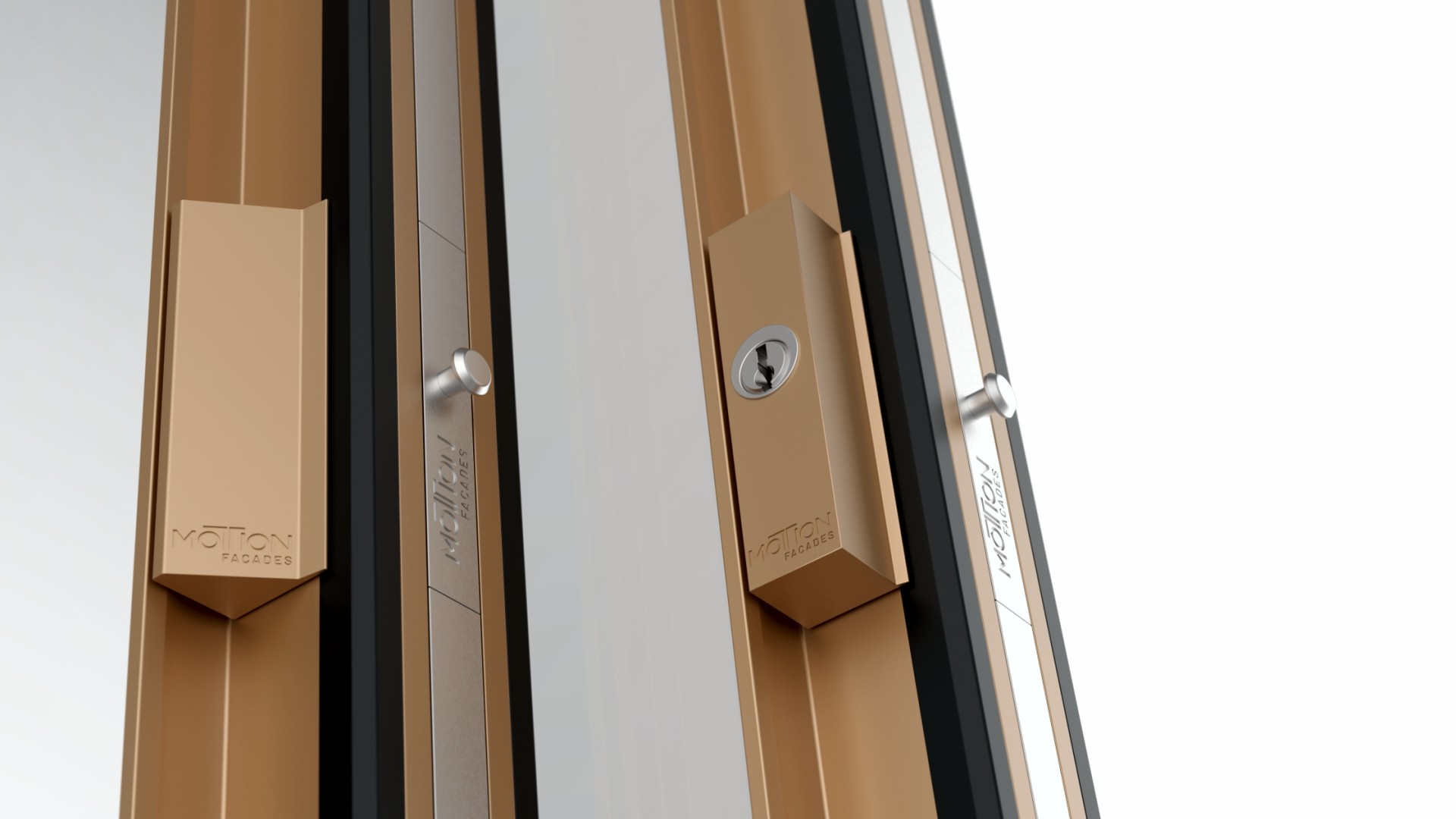

Maximum Locking Points 6
Sealing Type Brush with Cloth + Q-Lon

Performances

Fabrication Thermal Transmittance
EN ISO 10077-2 (Uw)
≥0.9 W/(m2K)
expand floor typologies

FLOOR
TYPOLOGIES

expand riding typologies

RIDING
TYPOLOGIES

expand hook_design typologies

HOOK
DESIGN

expand construction typologies

CONSTRUCTION
TYPOLOGIES

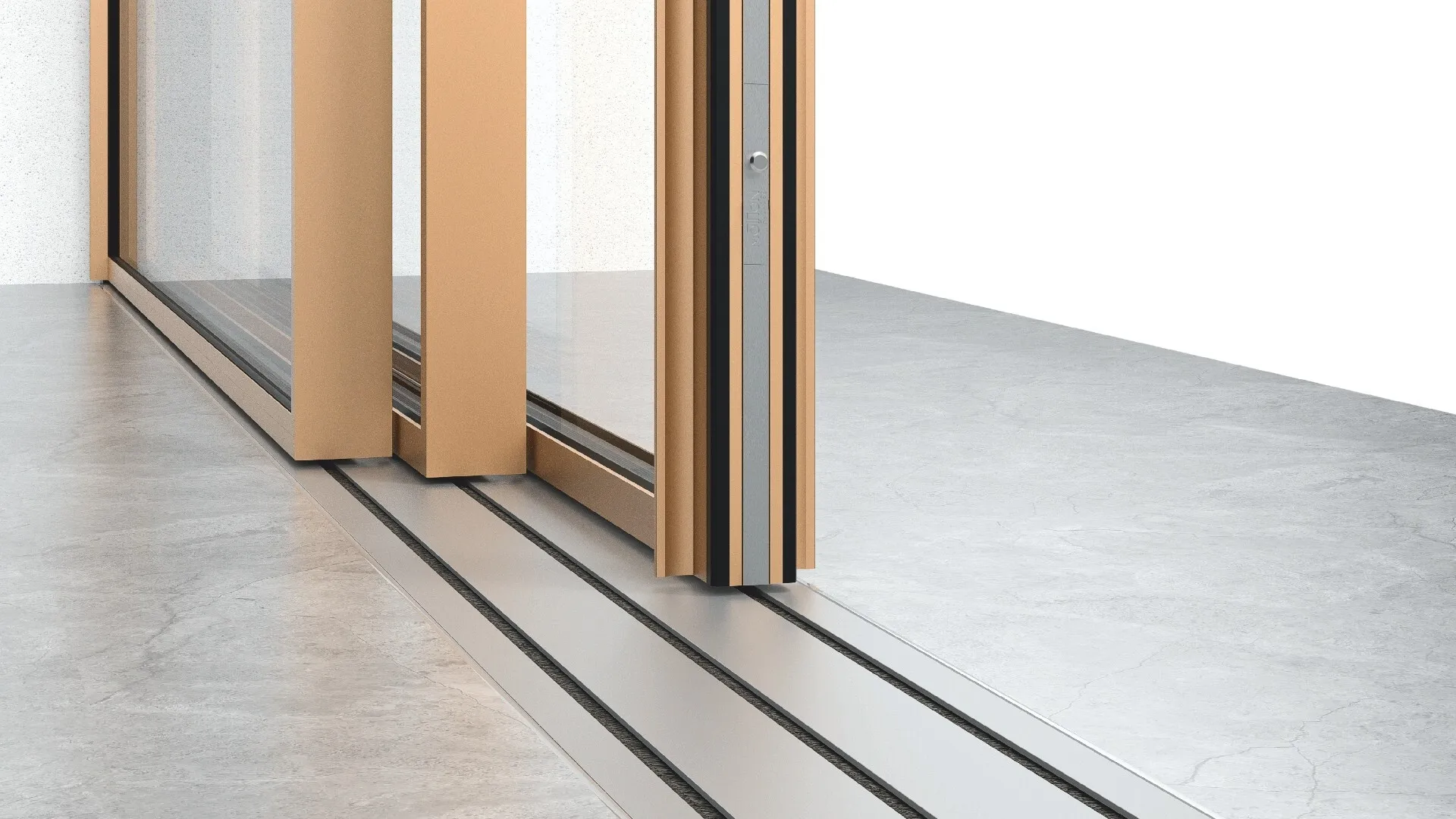

Step, Submerged typology

Step, Submerged

Pipe, Submerged typology

Pipe, Submerged

Blade typology

Blade

Glazing Bit typology

Glazing Bit

Max. Sash Width (W) 4000 mm Max. Sash Height (H) 6000 mm

Pocket - 1, 2, 3, 4 Sashes typology

Pocket - 1, 2, 3, 4 Sashes

Fix&Sliding - 2, 3, 4 Sashes typology

Fix&Sliding - 2, 3, 4 Sashes

Sliding - 2, 3, 4 Sashes typology

Sliding - 2, 3, 4 Sashes

Corner Inward / Outward openning<br>4, 5, 6, 7, 8 Sashes typology

Corner Inward / Outward openning
4, 5, 6, 7, 8 Sashes

Corner Pocket Inward / Outward<br>1, 2, 3, 4, 5, 6, 7, 8 Sashes typology

Corner Pocket Inward / Outward
1, 2, 3, 4, 5, 6, 7, 8 Sashes
