MOTION 6010 FS MINIMAL FOLDING SYSTEM, THERMAL SYSTEM
MOTION 6010 FS is the flagship of premium Minimal Folding systems, designed for high-end residential and sophisticated commercial spaces. Its defining features—Infinity Floor, concealed side frames, an ultra-slim central mullion, and expansive panels—create a seamless connection between interior and exterior, transforming spaces into light-filled, uninterrupted environments. Crafted for discerning architects and visionary designers, it embodies the ultimate fusion of aesthetics, precision engineering, and refined detailing.
With a sash face width minimized to just 36 mm (128 mm combined mullion), MOTION 6010 FS delivers unprecedented structural strength against wind load and can effortlessly reach 5 meters in height.
Performance and Comfort:
- Exceptional thermal and acoustic insulation comes standard with 32 mm double glazing, extendable to 45 mm triple glazing, ensuring comfort without compromise.
Engineering Excellence:
- Heavy-duty stainless steel hardware features an advanced top suspension system, allowing panels to glide effortlessly along the floor while remaining perfectly aligned at the top.
- This engineering allows panels to soar up to 5 meters in height without tilting, even when operating the access door.
- Premium bottom rollers glide along matching rails, guaranteeing years of whisper-quiet, seamless operation.
Threshold and Integration:
- Multiple bottom threshold options cater to every architectural vision, from stepped configurations with integrated drainage to flush Infinity Floor solutions, creating a truly immersive connection between interior and exterior.
Uncompromising Security:
- The innovative mullion lock engages automatically, enhancing burglary resistance.
- The access door features a bespoke multi-point locking system, with an electrified version available for cutting-edge convenience.
MOTION 6010 FS is more than a door—it is a statement of luxury, precision, and contemporary elegance, offering limitless design freedom and unmatched sophistication in every detail.
Technical characteristics
| Bottom track height | 55 mm |
| Floor step | 0 / 6 / 12 / 28 / 43 / 55 / 71 mm |
| Frame Height, Horizontal Top | 80 / 104 mm |
| Frame Height, Vertical | 64 mm |
| Frame Width | 74 mm |
| Tile Insert | 20 mm |
| Floor Typology | Step, Submerged |
| Riding Typology | Bottom Rolling |
| Sliding / Alignment rollers | Stainless Steel |
| Sash Height, Vertical | 36 mm |
| Sash Height, Horizontal | 36 mm |
| Sash Width | 60 mm |
| Centre Mullion Height | 128 mm |
| Max. Weight per Sash | 260 Kg |
| Max. Sash Width | 1300 mm |
| Max. Sash Height | 5000 mm |
| Opening type | Fold Slide |
| Glazing Width Possibilities | 32 / 45 mm |
| Maximum Locking Points | 5 |
| Sealing Type | 4 Gaskets |
Performances
| Fabrication Thermal Transmittance EN ISO 10077-2 | (Uw) ≥1.1 W/(m2K) |
FLOOR
TYPOLOGIES
MIDDLE
TYPOLOGIES
CONSTRUCTION
TYPOLOGIES
Submerged, Tile
Step with overlap
Step
Submerged, Pipe
Submerged, Pipe
Submerged, Pipe, Fin
Submerged, inline gutter, fin
Submerged, External gutter, fin
Submerged, Interior
Submerged with overlap

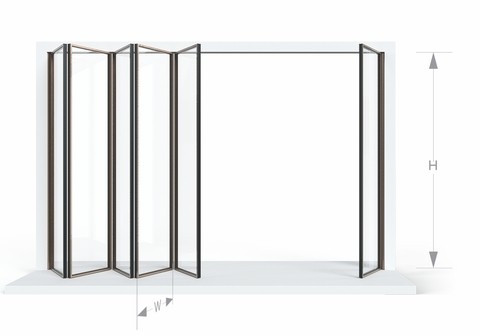

Max. Sash Width (W) 1300 mm Max. Sash Height (H) 5000 mm
Outward opening
LEFT - 2, 3, 4, 5, 6, 7, 8 Sashes
RIGHT - 0 Sashes

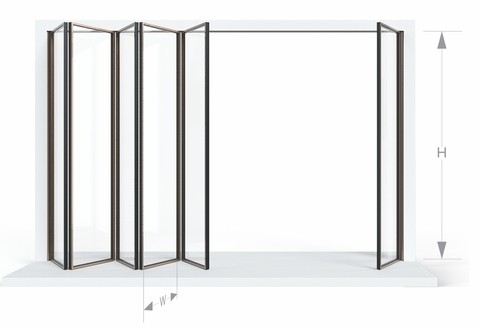

LEFT - 2, 3, 4, 5, 6, 7 Sashes
RIGHT - 1 Sash

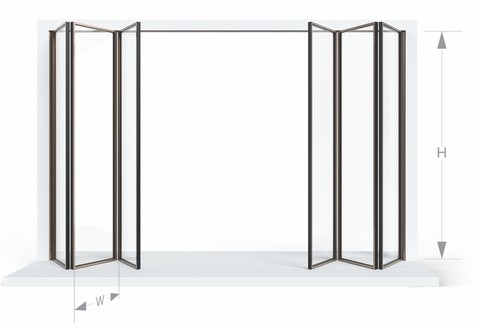

LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes

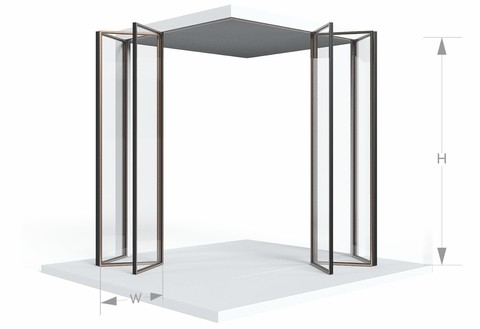

Corner Outward openning
LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes
Inward opening

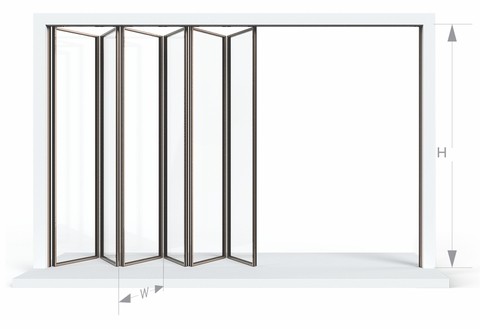

LEFT - 2, 3, 4, 5, 6, 7, 8 Sashes
RIGHT - 0 Sashes

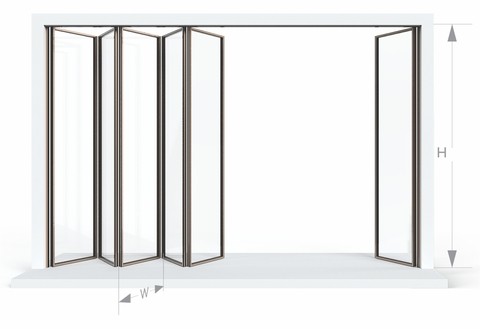

LEFT - 2, 3, 4, 5, 6, 7 Sashes
RIGHT - 1 Sash

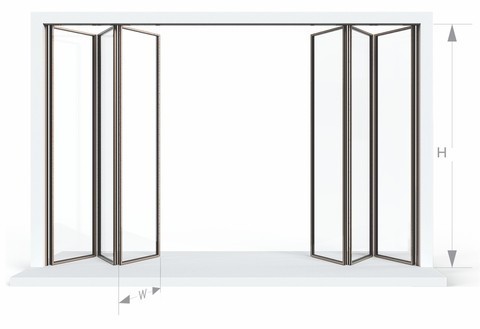

LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes

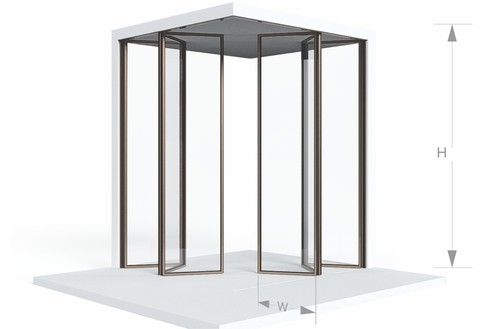

LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes
