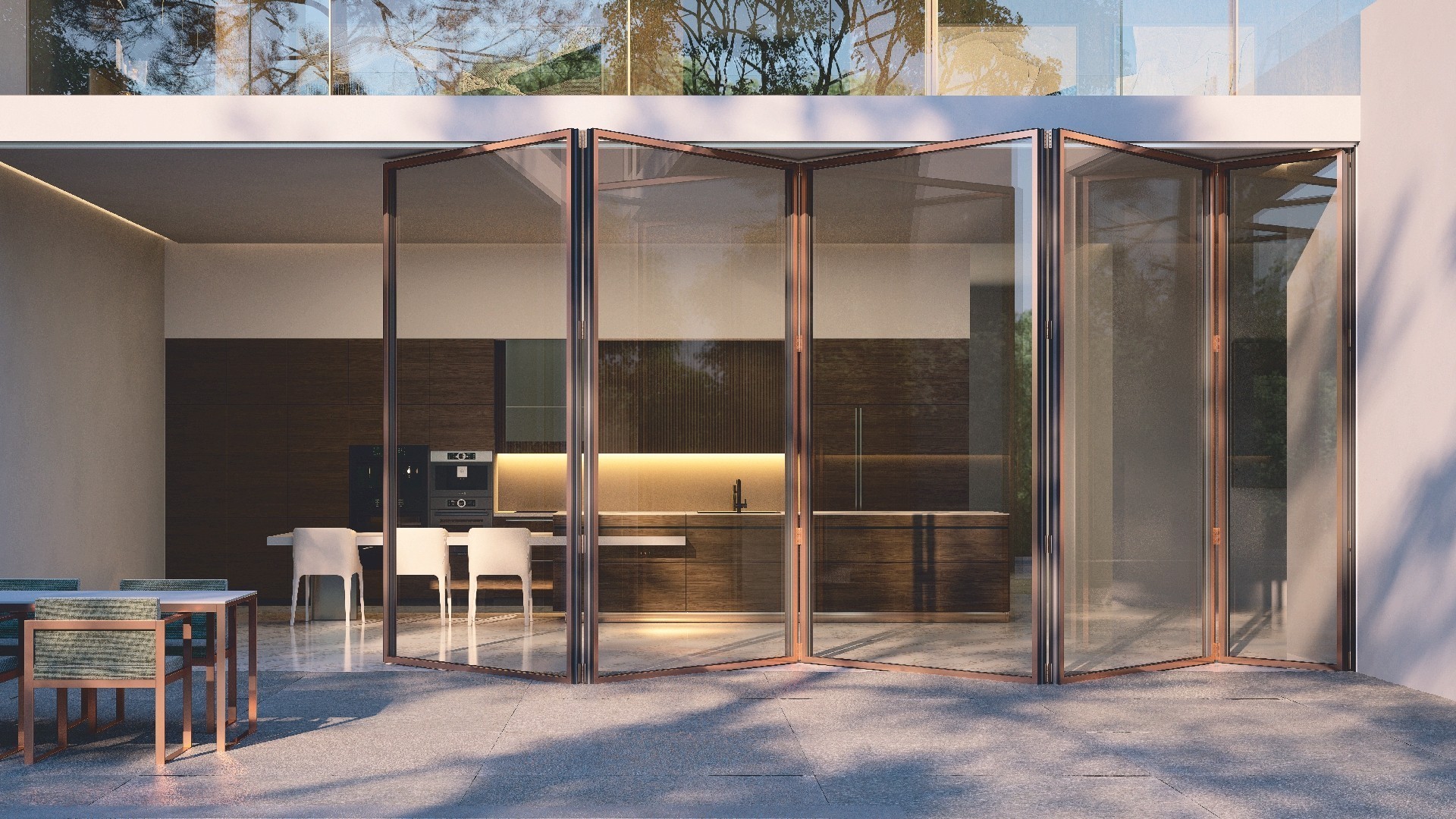

MOTION 60 PS MINIMAL PIVOT FOLDING SYSTEM, THERMAL SYSTEM
Technical characteristics
| Bottom track height | 55 mm |
| Floor step | 0 / 12 / 43 / 55 mm |
| Frame Height, Horizontal Top | 65 / 88 mm |
| Frame Height, Vertical | 64 mm |
| Frame Width | 74 mm |
| Tile Insert | 20 mm |
| Floor Typology | Step, Submerged |
| Riding Typology | Bottom Rolling |
| Sliding / Alignment rollers | Stainless Steel |
| Sash Height, Vertical | 36 mm |
| Sash Height, Horizontal | 36 mm |
| Sash Width | 60 mm |
| Centre Mullion Height | 86 mm |
| Max. Weight per Sash | 300 Kg |
| Max. Sash Width | 2000 mm |
| Max. Sash Height | 4000 mm |
| Opening type | Pivot Slide |
| Glazing Width Possibilities | 32 / 45 mm |
| Maximum Locking Points | 5 |
| Sealing Type | 4 Gaskets |
Performances
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | ≥1.0 W/(m2K) |
